Sollae CIE-H10A - Ethernet Remote I/O Controller Module with Remote Serial Port |
|
|
|
|
|
| |
| The CIE-H10A is a remote I/O Controller which can monitor digital Input and control digital Outputs over the Internet. It supports Modbus/TCP, HTTP and simple macros for stand-alone operation so that you can use it for various applications. It also features a Serial Port which can be used to control / monitor serial devices remotely over the Internet. |
| |
|
|
 |

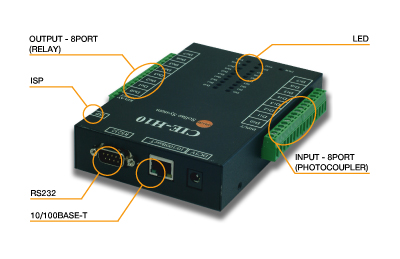

Functional diagram |
|
|
|
|
Product highlights |
|
- Network interface: 10Base-T / 100Base-TX Ethernet (RJ45 socket)
-
Ethernet speed and crossover detection
-
8 binary inputs (optocoupler)
-
8 binary outputs (relay, normally open contact)
-
All I / Os are brought out on plug-in screw terminals
-
Remote control or remote query of the I / Os via Modbus / TCP or web interface (HTTP)
-
Independent operation (without Ethernet connection) possible - as a mini PLC!
-
RS232 port with SubD9 connector
-
ezVSP Virtual Serial Port Driver (Win32)
-
ezManager for remote configuration (Win32)
-
Hotflash utility for firmware upgrades over the network
-
Supported protocols / standards: TCP, UDP, IP, ICMP, ARP, Ethernet, Telnet, TFTP, DHCP, PPPoE, DNS, HTTP, Modbus / TCP
-
Operating voltage 5VDC approx. 500mA
-
Dimensions: 153mm x 126mm x 32mm
|
|

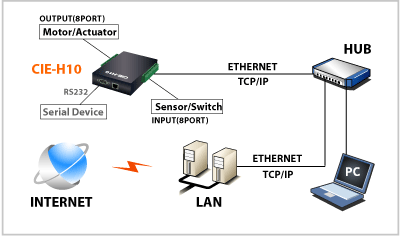

System implementation overview |
|
|
|
|
Detailed Specification |
|
| |
 |
Sollae CIE-H10A - Ethernet Remote I/O Controller Module with Remote Serial Port
The CIE-H10A is a remote I/O Controller which can monitor digital Input and control digital Outputs over the Internet. It supports Modbus/TCP, HTTP and simple macros for stand-alone operation so that you can use it for various applications. It also features a Serial Port which can be used to control / monitor serial devices remotely over the Internet.
| Quantity |
Price (GBP) [Excl. VAT] |
| 1 - 9 |
|
| 10 and above |
|
|
|
|
|  |
|
View Downloads for this Product
