Emulation Adaptor: Mating adaptor for TQFP-64, 0.8mm pitch Solder Down Module

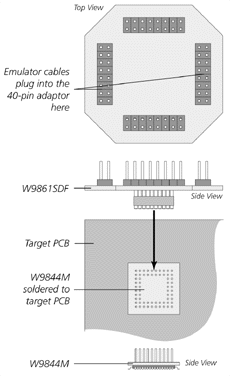

This adapter plugs into the 'TQFP-64 Solder Down Module' (Order Code: AD-W9844M ) and converts the pin-out to a suitable socket which is compatible with the ATmega 64-pin TQFP Emulation Pod.

This is ONE adaptor of a TWO adaptor mating set. The other part of this adaptor set must be ordered separately.



Device Support (by family)



This product supports devices from the families listed below:

Atmel (Microchip):
  • ATmega AVR - FLASH Microcontroller Family



Device Support (by manufacturer / programming algorithm)




Atmel Corporation

Emulation (In-Circuit):
ATmega AVR - FLASH Microcontroller Family:
ATmega103, ATmega103L, ATmega128, ATmega128L, ATmega169, ATmega64, ATmega64L



Ordering Information...




Emulation Adaptor: 0.025 inch Square Header Emulator Interface to interface to TQFP-64, 0.8mm pitch Solder Down Module
Emulation Adaptor: 0.025 inch Square Header Emulator Interface to interface to TQFP-64, 0.8mm pitch Solder Down Module
Manufacturer:  Winslow Adaptics
Order Code:  AD-W9861SDF
Quantity Price (GBP) [Excl. VAT]
1 and above 91.66

Availability:
0 in stock
7 days delivery
Product Information
Product:  Emulation Adaptor: 0.025 inch Square Header Emulator Interface to interface to TQFP-64, 0.8mm pitch Solder Down Module
Manufacturer:  Winslow Adaptics
Order Code:  AD-W9861SDF
Availability:  0 in stock
7 days delivery
Price:   91.66 (GBP)
 [Excl. VAT]


Device Support
Device Support List


Associated Products View All
Atmel AVR Microcontroller Tools
ICE200 - In-Circuit Emulator for the Atmel AT90S / ATtiny AVR FLASH Microcontroller Families >>
Adaptors
Emulation Adaptor: TQFP-64, 0.8mm pitch Solder Down Module for Atmel ATmega 64-pin TQFP Microcontrollers >>
Emulators
ICE200 - In-Circuit Emulator for the Atmel AT90S / ATtiny AVR FLASH Microcontroller Families >>
