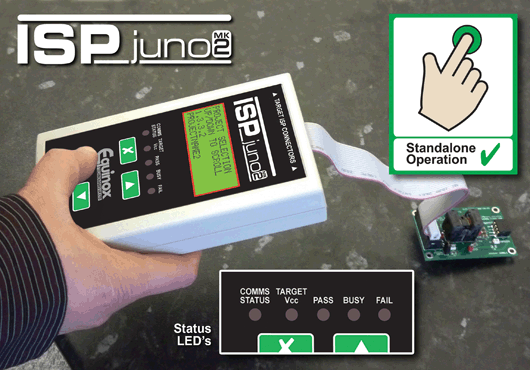

Programmer ‘Standalone Mode’ allows the programmer to be controlled via the push buttons on the front panel of the programmer - no PC connection is required. The programmer LCD Display and the LED Status Indicators are used to display the current status of the programmer.
2-button programmers support execution of a single 'Standalone Programming Project'
4-button programmers support execution of up to 64x 'Standalone Programming Projects'
it is possible to select from 1 of 64 previously uploaded Programming Projects and then to repeatedly execute this project to program a batch of devices.
Features
Standalone Mode - Main Features
Programmer is completely portable as no PC connection is required
Programmer supports storage up to 64 independent Programming Projects in the non-volatile On-board FLASH Memory Store.
The operator simply selects the required project using LCD and keypad
Each project name is version controlled showing the project name, date, firmware revision and build date. e.g. myproject-240402-2.3.4.12
Single key auto-program mode
Simple PASS / FAIL response with 'LED Status diagnostics' on program PASS or FAIL
Operator can not inadvertently change the programming data or settings
Programmer powers up with the last select 'Standalone Programming Project' automatically pre-selected
