FlashPro-ARM-1V-XS Features |
|
- Supports Joint Test Action Group (JTAG, cJTAG), and Serial-Wire-Debug (SWD) communication.
-
Programmable JTAG/SWD clock up to 20 MHz, effective throughput up to 1 MBytes/s.
-
Built-in galvanic isolation between PC and targets.
-
Current measurement from 0.02 to 500 mA.
-
Up to 64 programmers can be connected over USB to one PC running Windows(TM) XP, 7, 8, 10, or Linux Ubuntu/Debian.
-
Easy to use GUI allows the user to configure all necessary options with ease (Windows only).
-
Extensive Memory options including select erase, program, verify. Select flash data can be retained across programming sequences.
-
Supports full/segment erase, blank check, write and verify of code using one Auto Program function or separate functions for easy customization.
-
Shared library and Command-Line support (Linux).
-
DLL and Command-Line support (Windows).
-
C++ and C# code examples provided.
-
FCC and CE certified.
|
|
Programs MCUs from One of these Vendors: |
|
- Texas Instruments
- ST Microelectronics
- Silicon Labs
- NXP/Freescale
- Nordic Semiconductor
- Atmel
- Active-Semi
(See MCU list below). When adapter is connected to computer you can choose which vendor should be supported. Choice is permanent.
|
|

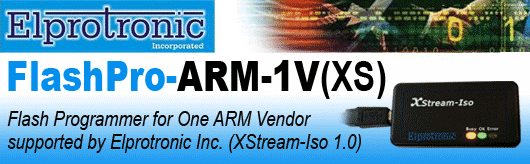

FlashPro-ARM-1V-XS Product Picture |
|
|
|
|
Communication |
|
- Full Speed USB 2.0 (12 Mb/s) communication interface
-
Programmable JTAG/SWD clock up to 20 MHz, effective throughput up to 1 MBytes/s
-
JTAG speed test for connection between adapter and MCU
-
Measures TDI/TDO communication errors up to 20 MHz
-
Galvanic isolation between PC and targets
-
Current measurement from 0.02 to 500 mA
|
|
Code File |
|
- No code size limitations
-
Code formats can be TI (*.txt), Motorola (*.srec, *.s19, *.s28, *.s37), Intel and TI-CCS (*.hex, *.bin) for programming
|
|
Dynamic Link Library support |
|
- API-DLL, and shared library, provided for easy integration with user application
-
Multi-FPA DLL, and shared library, allows control of up to 64 programmers simultaneously using broadcast-style commands from one user application
-
Generic-FPA DLL allows thread-safe control of up to 64 programmers of any type (MSP, CC, C2000, ARM) using independent threads from one user application
-
Command-Line tool allows easy programming with scripts. In addition, provided executables allow programming adapters connected to the host computer to be controlled remotely over the network
|
|
Protection |
|
- Memory protection options for per-page protection and overall debug access disable
-
Unlock device capability for full erase even after debug access disable (if supported by MCU)
|
|
Miscellaneous |
|
- User defined programming sequence uses script file. No programming technique and language knowledge is required.
-
Open/Save Project with encryption and password protection.
-
Target device can be powered from the programming adapter (programmable Vcc from 1.6 V to 3.7 V step 0.1 V) or from external source (1.6 V to 3.7 V))
-
Defined Check Sum calculation (Sum, CRC16, CRC32). Up to four CS banks can be specified
-
Open/Save Project with encryption and password protection.
-
Lock setup capability in GUI, useful in production
-
Unique serial number assign capability. Software package can assign and automatically increment the serial number, model type and revision. Serial number with or without an automatically inserted current date can be stored in flash memory in HEX, BCD or ASCII format. The serial number can be assigned from a user defined list in a file
-
Serial number can be read from the bar code using Bar-Code Scanner and saved in the target's device flash
-
Log file capability allowing to review information about the flashed target devices
|
| |
 |
Elprotronic FlashPro-ARM-(X2S)
Flash Programmer for Texas Instruments MSP430 MCUs (XStream-Iso 1.0).
| Quantity |
Price (GBP) [Excl. VAT] |
| 1 and above |
620.18
|
|
|
|
|  |
|
