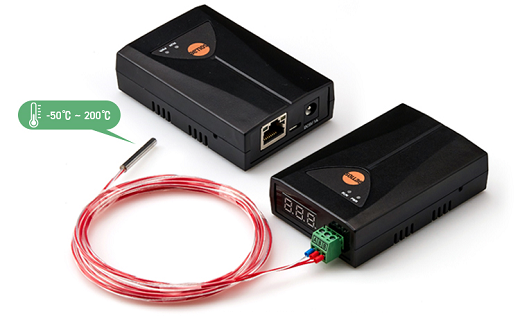

Sollae SIG-5560 / Temperature Gateway (Modbus TCP) |
|
|
|
|
|
| |
The Sollae SIG-5560 is a 'temperature gateway' which reads the temperature value from a resistance temperature detector PT100 and then send this reading via a network e.g. Ethernet using the Modbus TCP protocol. A user can remotely read the temperature by using any kind of Modbus Software/Apps or HMI device.
|
| |
|
|
 |
Functional diagram |
|
|
Product highlights |
|
- PT100 connection port: support 3-wire PT100 sensors
-
Display: a red 3-digit 7-segment LED
-
Protocol: Modbus/TCP
-
Storing the lowest and the highest temperature
-
Support multiple TCP connection (Max. 4 channels)
-
Support a 1-bit ADC function for the Internet Switch
-
Measurement Error: within ±0.3℃ (±0.54℉)
-
Maximum Measurement Range: -200℃ ~ 850℃ (-328℉ ~ 1562℉)
-
Device operation temperature range (Industrial: -40℃ ~ +85℃)
|
| |
 |
Sollae SIG-5560 / Temperature Gateway (Modbus TCP)
The SIG-5560 is a temperature gateway which reads the temperature value from a resistance temperature detector PT100 and then send this reading via a network e.g. Ethernet using the Modbus TCP protocol. A user can remotely read the temperature by using any kind of Modbus Software/Apps or HMI device.
| Quantity |
Price (GBP) [Excl. VAT] |
| 1 - 9 |
|
| 10 and above |
|
|
|
|
|  |
|
