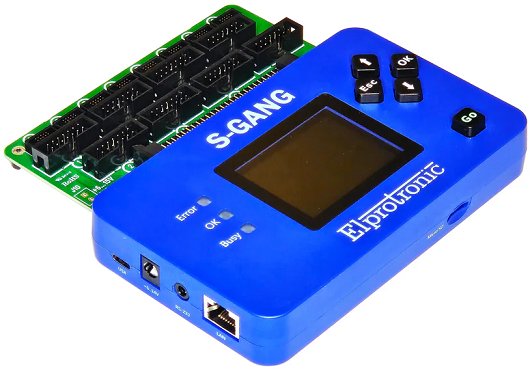

Elprotronic - S-GANG - Standalone Gang ISP Programmer |
|
|
|
|
|
| |
The Elprotronic 'S-GANG' programmer is a fast, flexible and reliable Gang ISP (In-System Programming) solution designed for high-volume production use. The programmer features up to 8x 'programming channels' and is capable of programming the same 'Target Image' into up to 8x target ICs / DUTs simulataneously. The programmer can be used in both 'PC controlled' and 'Standalone' modes making it ideal for use in production programming fixtures.
|
| |
|
|
 |
Main Features |
|
- Gang In-System Programming (ISP) solution
-
Supports ISP programming of up to 8x target ICs simultaneously (with same target image)
-
Robust design - ideal for production / production programming fixture use
-
Supports most popular programming interfaces including: JTAG, cJTAG, SWD, SBW, BSL, SWIM, UART, TPI, PDI, UPDI, QSPI
-
Supports ISP programming of a wide variety of programmable microcontrollers and Serial Interface Memory Devices
-
Run in Standalone and PC-interactive programming modes
-
Supports 'Standalone Mode' programming (no PC required - up to 60x target images can be held in Internal FLASH memory)
-
Control each connected target channel independently (Independent connections per channel: Power, Reset and communication pins, only common pin is GND)
-
Galvanic isolation of all control ports - USB, Ethernet, RS232
|
|
GANG - ISP programming |
|
|
|
- Supports ISP programming of up to 8x target ICs simultaneously (with same target image)
-
Each target IC / DUT is connected to a different independent channel on the programmer
-
Independent target connections per channel: Power, Reset and communication pins, only common pin is GND)
-
The programmer can be ordered with from 1x to 8x channels enabled for programming.
|
|
Programming interfaces supported |
|
- ARM: JTAG, cJTAG, SWD
-
MSP430: JTAG, SBW, BSL
-
STM8/RL78: SWIM/UART
-
AVR/PIC: JTAG/SPI/TPI/PDI/UPDI (Q1 2026)
-
C2000: JTAG (Q1 2026)
-
iMOTION 2.0: SWD, UART
-
SPI Flash: SPI, QSPI
|
|
Programmer - Control Modes |
|
- Standalone Mode control (Target images stores in programmer Internal FLASH)
-
PC-interactive control - uses Elprotronic control GUI and / or control dll
-
TTL Port control - useful when controlling the programmer from a PLC or ATE equipment
|
|
Programmer - Control Ports |
|
- USB port
-
Ethernet port
-
RS232 port
-
Galvanic isolation of all control ports to protect the PC from ESD events
|
|
Device Support Overview |
|
- ARM - FLASH microcontrollers via SWD / JTAG interface
-
AVR - FLASH microcontrollers via JTAG / PDI / TPI / UPDI interface
-
MSP430 - FLASH microcontrollers
-
Serial SPI EEPROM memories via SPI / QSPI interface
-
Serial SPI FLASH memories via SPI / QSPI interface
|
|

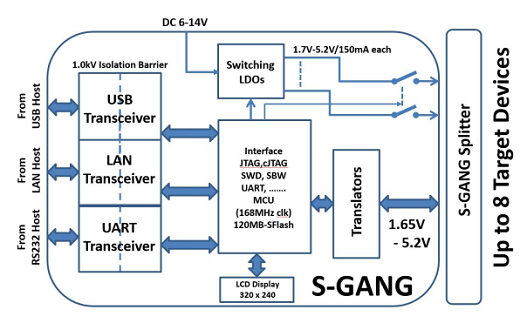

Functional Overview |
|
|
|
| |
|  |
|
