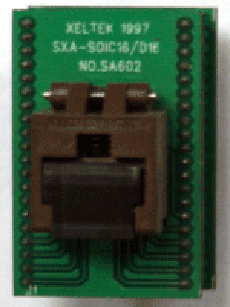

This Programming Adaptor is designed to convert any 8 to 16-pin SOP / SOIC package device into the corresponding 8 to 16-pin Dual-in-Line (DIL) package suitable for inserting into the ZIF socket of a Parallel Programmer.

Please Note:
This adaptor is a 'Programming Adaptor' and is only suitable for use with a Xeltek Device Programmer.

This adaptor is suitable for the following package SOP / SOIC types:

• SOP / SOIC 8 - converts to 16 DIL pins on underside (8 DIL pins not used for 8-pin Target Chip)
• SOP / SOIC 14 - converts to 16 DIL pins on underside (2 DIL pins not used for 14-pin Target Chip)
• SOP / SOIC 16 - converts to 16 DIL pins on underside (connected pin-to-pin)

Type: SOP/SOIC (Clam shell)
SOIC packages supported: 8, 12, 14 or 16
Top PCB: SOIC16/D16
Top Adaptor pin-out: SOP/SOIC16
Bottom PCB: W*L(mm)=7.5*10.3 Pitch(mm)=1,27
Bottom Adaptor pin-out: DIL-40
Typical Device Support: Xilinx XC17xx, Microchip 93Cxx
Programmer supported: SP280U / 580U / 3000U / 8000U / 9000U
