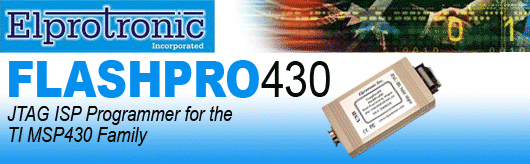

FlashPro430 - JTAG ISP Programmer for the TI MSP430 Family





The FLASHPRO-430 is a high-speed In-System Programmer for the TI MSP430 family of FLASH microcontrollers. It interfaces to the MSP430 Target Device via JTAG or SBW or BSL and provides high-speed programming of the internal FLASH of the device. The interface to the PC is via USB.

Device SupportDownload Pic




Features



Main Features
  • Very fast programming speed - JTAG- over 26 kB/s, Spy-Bi-Wire - over 8 kB/s, BSL - over 11 kB/s.
  • These programmers are professionally made and recommended by Texas Instruments as the Third Party Tools source.
  • Our programmers are currently the fastest programmers on the market.
  • Support the JTAG, Spy-Bi-Wire and BSL interfaces.
  • Support all MSP430Fxx microcontrollers. See MSP430 list below.
  • NEW! Automated DCO calibration - up to eight DCO frequency can be calibrated and related DCO registers saved in the FLASH INFO memory.
  • NEW! Self Test program that allows to check programmer functionality with customer's fixture and target device.
  • User defined programming sequence uses script file. No programming technique and language knowledge is required.
  • Blow the JTAG security fuse capability.
  • Target device can be programmed via JTAG or BSL (bootstrap loader) interface.
  • Selectable JTAG communication speed - 4 Mb/s, 1 Mb/s or 400 kb/s allows to communicate with the target device even if the ESD protection components have been added to the JTAG lines.
  • Fast BSL communication speed up to 350 kb/s via BSL (bootstrap loader) allows to program target device very fast via BSL interface.
  • No code size limitations.
  • Target device can be powered from the programming adapter (programmable Vcc from 2.2V to 3.6V step 0.2V) or from external source (2.2V to 3.6V).
  • Easy to use WindowsTM based software.
  • Programmer accept TI (*.txt), Motorola (*.s19, *.s28, *.s37), Intel (*.hex) and *.d43 and *.a43 data files for programming.
  • Combine code files capability.
  • Open/Save Project with encryption and password protection.
  • Lock setup capability, useful in production.
  • Software package can assign and automatically increment serial number, model type and revision. Serial Number with or without an automatically inserted current date can be stored in the FLASH memory in HEX, BCD or ASCII format.
  • Serial Number can be read from the bar code using Bar-Code Scanner and saved in the target's device FLASH.
  • Log file capability allowing to review information about the flashed target devices.
  • Up to 8 USB-FPA can be connected to one PC.
  • MSP430.DLL library allows use the USB-MSP430-FPA as an JTAG In-Circuit Debugger like a FET (Flash Emulation Tool) with the IAR, Quadravox, NoICE or CrossWorks IDE debugging software.
  • Multi-FPA API-DLL software package can control up to eight FlashPro430 FPAs (working simultaneously) from other programs. Using eight FlashPro430 FPAs the programming time of the 8 target devices is almost the same like programming time of the one target device programmed from one FPA. Production programming becomes faster..
  • Command line interpreter shell for the Multi-FPA API-DLL that allows to use the command prompt technique for remote control up to eight FlashPro430 FPAs (working simultaneously).
  • NEW! MyMSP430Prg software package in Visual C++ and Visual Basic 6.0 intendend to help users create their own application uses API-DLL by providing a simple starting point.
  • Source code for the Multi-FPA API-DLL demo written in Visual C++.net, Visual Basic.net, LABView 7.1, and for the DOS-command application. Download fully functional software from our website and try it.
  • Programmer has been tested and found to comply with FCC and CE requirements.

Software included in STANDARD version
  • Supports JTAG, Spy-Bi-Wire and BSL interfaces.
  • Serialization and Multi-FPA API-DLL.




Device Support (by family)



This product supports devices from the families listed below:

Texas Instruments:
  • MSP430 Flash Microcontroller Family



Please note:
Not all devices may be supported within a family.
Please see the Detailed Device Support List for a list of all devices which the product supports.




Ordering Information...




FlashPro430 - JTAG ISP Programmer for the TI MSP430 Family
The FLASHPRO-430 is a high-speed In-System Programmer for the TI MSP430 family of FLASH microcontrollers. It interfaces to the MSP430 Target Device via JTAG or SBW or BSL and provides high-speed programming of the internal FLASH of the device. The interface to the PC is via USB.
Manufacturer:  Elprotronic Inc.
Order Code:  ELP-USB-MSP430-FPA-STD
Quantity Price (GBP) [Excl. VAT]
1 - 9
233.75
10 and above
222.06

Availability:
12 in stock


Product Information
Product:  FlashPro430 - JTAG ISP Programmer for the TI MSP430 Family
Manufacturer:  Elprotronic Inc.
Order Code:  ELP-USB-MSP430-FPA-STD
Availability:  12 in stock
Price:   233.75 (GBP)
 [Excl. VAT]


Device Support
Device Support List


Downloads
Download View Downloads for this Product
