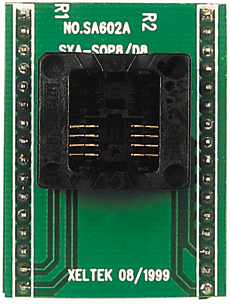

Xeltek Programming Adaptor: SA602A - 8-pin SOP/SOIC to 16-pin DIL (open top) |
|
|
|
|
|
| |
This Programming Adaptor is designed to convert any 8-pin SOP / SOIC package device into the corresponding 8-pin Dual-in-Line (DIL) package suitable for inserting into the ZIF socket of a Xeltek Parallel Programmer. The adaptor features an 'open top' type socket.
Please note:
This adaptor features an 8-pin SOIC / SOP adaptor on the top but 16 DIL pins on the bottom.
The 8 x SOIC/SOP pins are wired to the DIL pins in a 1-1 fashion and then the other 8 DIL pins are not connected.
Type: SOP/SOIC (open type)
Top PCB: SOP/SOIC8 to D16
Top Adaptor pin-out: SOP/SOIC8
Bottom PCB: TBD
Bottom Adaptor pin-out: DIL-16
Typical Device Support: SOP/SOIC Serial EEPROM's
Programmer supported: SP280U / 580U / 3000U / 8000U
|
| |
|  |
| Product Information |
| Xeltek Programming Adaptor: SA602A - 8-pin SOP/SOIC to 16-pin DIL (open top) |
| Xeltek |
|
XEL-SA602A |
| Discontinued Product |
|
|
