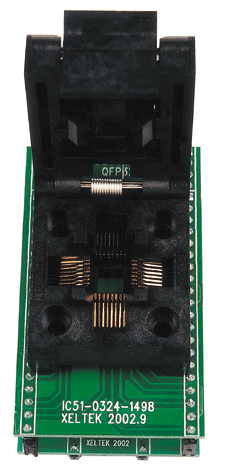

Xeltek Programming Adaptor: SA663 - 32-pin TQFP to 32-pin DIL




The Xeltek SA663 is a Programming Adaptor which converts a device in a 32-pin TQFP package to a 32-pin 0.8" pitch DIL pinout suitable for using with a Device Programmer.

Type: TQFP
Top PCB: PQ32/D32
Bottom PCB:  W*L(mm)=7*7  Pitch(mm)=0,8
Typical Device Support: MOTOROLA MC68HC908JB18FA
Programmers supported: SP280/580/3000U/8000/9000U



Ordering Information...




Xeltek Programming Adaptor: SA663 - 32-pin TQFP to 32-pin DIL
The Xeltek SA663 is a Programming Adaptor which converts a device in a 32-pin TQFP package to a 32-pin 0.8" pitch DIL pinout suitable for using with a Device Programmer.
Manufacturer:  Xeltek
Order Code:  XEL-SA663
Quantity Price (GBP) [Excl. VAT]
1 and above
38.75

Availability:
7 in stock
Product Information
Product:  Xeltek Programming Adaptor: SA663 - 32-pin TQFP to 32-pin DIL
Manufacturer:  Xeltek
Order Code:  XEL-SA663
Availability:  7 in stock
Price:   38.75 (GBP)
 [Excl. VAT]
