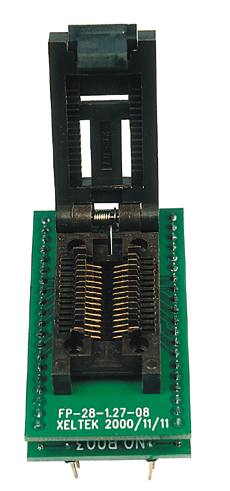

Xeltek Programming Adaptor: SA404 28-pin SOP/SOIC to 28-pin DIL |
|
|
|
|
|
| |
This Programming Adaptor is designed to convert any 28-pin SOP / SOIC package device into the corresponding 28-pin Dual-in-Line (DIL) package suitable for inserting into the ZIF socket of a Parallel Programmer.
Please note:
This adaptor features an 28-pin SOIC / SOP adaptor on the top but 28 DIL pins on the bottom.
Type: SOP/SOIC (open type)
Top PCB: SOP/SOIC28 to D28
Top Adaptor pin-out: SOP/SOIC28
Bottom PCB: B004 W*L(mm)=7,8 Pitch(mm)=1,27
Bottom Adaptor pin-out: DIL-28
Typical Device Support: PIC16C5x,89C2051, COP8Sx
Programmers supported: SP280U / 580U / 3000U / 8000 / 9000U |
| |
This product has been discontinued. Please refer to the Replacement Product instead:
|  |
| Product Information |
| Xeltek Programming Adaptor: SA404 28-pin SOP/SOIC to 28-pin DIL |
| Xeltek |
|
XEL-SA404 |
| Discontinued Product |
|
|
