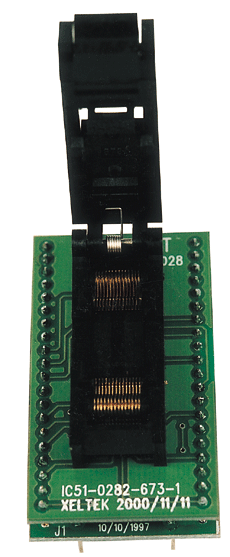

Xeltek Programming Adaptor: SA430T - 28-pin SOP/SOIC to 28-pin DIL |
|
|
|
|
|
| |
This Programming Adaptor is designed to convert any 28-pin SOP / SOIC package device into the corresponding 28-pin Dual-in-Line (DIL) package suitable for inserting into the ZIF socket of a Parallel Programmer.
Please note:
This adaptor features an 28-pin SOIC / SOP adaptor on the top but 28 DIL pins on the bottom.
Type: SOP/SOIC (open type)
Top PCB: SOP28/D28
Top Adaptor pin-out: SOP/SOIC28
Bottom PCB: B005 W*L(mm)=8.2*11.8 Pitch(mm)=0,55
Bottom Adaptor pin-out: DIL-28
Typical Device Support: Atmel 28C64
Programmer supported: SP280U / 580U / 3000U / 8000U |
| |
|  |
|
