Xeltek Programming Adaptor: SA629A-B022 - 56-pin SOP/SOIC to 48-pin DIL |
|
|
|
|
|
| |

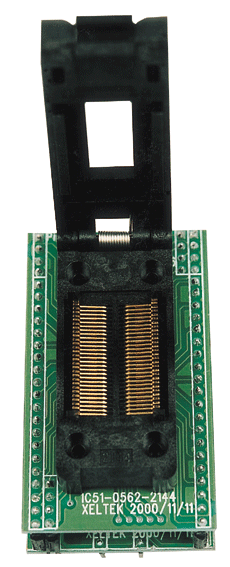

The Xeltek SA629A-B022 is a Programming Adaptor which converts a device in a 56-pin SOP/SOIC package to a 48-pin 0.8" pitch DIL pinout suitable for using with any Device Programmer.
Please note:
This adaptor features an 56-pin SOIC / SOP adaptor on the top but 48 DIL pins on the bottom.
Type: SOP/SOIC
Top PCB: SSOP56/D48
Bottom PCB: B022 W*L(mm)=13.3*23.7 Pitch(mm)=0,8
Typical Device Support: AMD Am29BL162C
Programmers supported: SP 280U / 580U/ 3000U / 9000U |
| |
|  |
|
