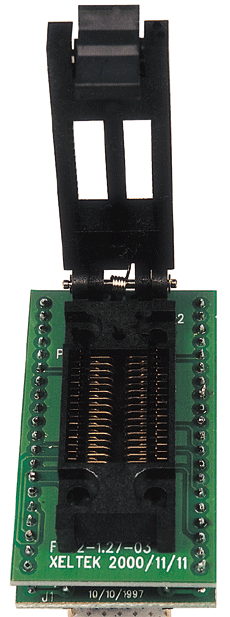

Xeltek Programming Adaptor: SA630 - 32-pin SOP/SOIC to 32-pin DIL |
|
|
|
|
|
| |
This Programming Adaptor is designed to convert any 32-pin SOP / SOIC package device into the corresponding 32-pin Dual-in-Line (DIL) package suitable for inserting into the ZIF socket of a Parallel Programmer.
Please note:
This adaptor features an 32-pin SOIC / SOP adaptor on the top and 32 DIL pins on the bottom.
Type: SOP/SOIC (open type)
Top PCB: SOP32/D32
Top Adaptor pin-out: SOP/SOIC32
Bottom PCB: B005 W*L(mm)=8,9 Pitch(mm)=1,27
Bottom Adaptor pin-out: DIL-32
Typical Device Support: ATMEL 894D12
Programmer supported: SP280U / 580U / 3000U / 8000U |
| |
|  |
|
