Xeltek Programming Adaptor: SA605B 8 / 14 / 20-pin SOP/SOIC to 40-pin DIL

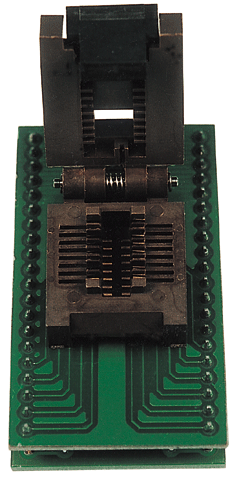

This Programming Adaptor is designed to convert any 8 / 14 / 20-pin SOP / SOIC package device into the corresponding 40-pin Dual-in-Line (DIL) package suitable for inserting into the ZIF socket of any Xeltek Parallel Programmer.

The adaptor features a 20-pin SOP / SOIC socket on the top which can accept 8-pin, 14-pin and 20-pin SOP / SOIC devices. The relevant pins are mapped 1-to-1 to the DIL pins on the botton of the adaptor. This adaptor will only work with a Xeltek programmer as it has 40 DIL pins on the bottom.

Type: SOP/SOIC (open type)
Top PCB: SOIC20/D20
Top Adaptor pin-out: SOP/SOIC20
Bottom PCB: B005 W*L(mm)=4.4*6.5  Pitch(mm)=0,65
Bottom Adaptor pin-out: DIL-40
Typical Device Support: eg. ATtiny11,12,15,25,45
Programmer supported: SP280U / 580U / 3000U / 8000U / 9000U

The SA605B Adaptor replaces the SA605A Adaptor. It will only work with a Xeltek Programmer.



Ordering Information...




Xeltek Programming Adaptor: SA605B 8 / 14 / 20-pin SOP/SOIC to 40-pin DIL
This Programming Adaptor is designed to convert any 8 / 14 / 20-pin SOP / SOIC package device into the corresponding 40-pin Dual-in-Line (DIL) package suitable for inserting into the ZIF socket of a Parallel Programmer. Only suitable for Xeltek programmers.
Manufacturer:  Xeltek
Order Code:  XEL-SA605B
Quantity Price (GBP) [Excl. VAT]
1 and above
21.25

Availability:
2 in stock
Product Information
Product:  Xeltek Programming Adaptor: SA605B 8 / 14 / 20-pin SOP/SOIC to 40-pin DIL
Manufacturer:  Xeltek
Order Code:  XEL-SA605B
Availability:  2 in stock
Price:   21.25 (GBP)
 [Excl. VAT]
