Fastest low-cost programmer in the market |
|
- Programs high-density Flash memory devices at near theoretical minimum programming time.
-
Intel 28F320W18 (1.8 volts 32Mbit) at 18 seconds (13 sec for program and 5 sec for verify).
-
Speed comparable to Data I/O FlashPak.
|
|
Device Support - Supports 31,900+ devices from 100+ manufacturers |
|
- Supports 30,000+ devices from 100+ manufacturers including Memory, MCU, and PLD.
- More devices are added and released every week
- Priority update for customer requested devices
- Free software updates via the Internet
|
|
ZIF Socket - Supports up to 48-pin DIL Devices |
|
|

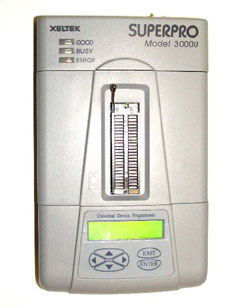

The SuperPro 3000U programmer features a 48-pin DIL (Dual-In-Line) ZIF (Zero Insertion Force) socket with 48 independent pin-drivers. The 48-pin ZIF socket allows the 3000U to support many more devices than the more traditional 40-pin programmers on the market including high-density FLASH and EEPROM Memory devices which are common in 48-pin TSOP packages. Many of the more recent high-integration microcontrollers also require more than 40pins for programming. A suitable Package Adaptor is required to convert the package of the target chip to the DIL equivalent.
The SuperPro 3000U programmer can also be upgraded via a hardware plug-in module (PEP Module) to support up to 100 independent pin-drivers. This allows the 3000U programmer to support programing of very high pin-count devices such as CPLDs, FPGAs and high-end microcontrollers.
|
|
Universal pin-drivers up to 100 pins |
|
|
|
- Standard universal 48 pin-drivers support devices down to 1.5 volts.
-
100 pin-driver expander module (optional), PEP3000, allows for programming of devices with up to 100 pins.
-
Universal pin-driver architecture up to 100 pins makes it easy to develop device algorithms and to locate socket adapters.
|
|

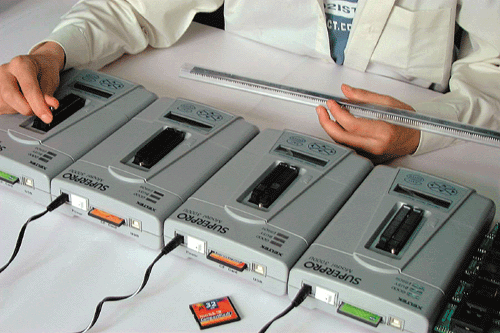

Supports Gang Programming Mode |
|
|
|
- Programmers can be used in 'Gang Mode' to give very high device programming throughputs
-
A Compact Flash Card is used to transfer the data to each programmer.
|
|
Designed for multi-applications, three modes of operation are supported |
|
- Standard PC hosted operation for R&D and Engineering.
-
Stand-alone operation for manufacturing or service. Built-in keyboard and LCD display provides for local operation.
-
Terminal mode to operate via an external instrument such as IC handler, terminal, or controller.
-
*** Note: Stand-alone or Terminal mode operation requires an optional Compact Flash card to be inserted for operation.
|
|
Powerful Windows based control software |
|
|
|
- Microsoft Windows 98/Me/NT/2000/XP compatibility
-
Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.
-
History of device selection and file loading simplifies user operation.
-
Batch command combines device operations like program, verify, security into a single command at any sequence.
-
Auto start batch command begins to program a chip automatically as soon as the chip is inserted.
-
Serial numbers can be generated and programmed onto a chip.
|
|
Stand Alone Operation |
|
|
The Superpro 3000U Programmer can be used in Standalone Mode (i.e. without a PC) making it ideal for production programming. The files to be programmed must be copied to a Compact Flash memory card and this card is inserted into the programmer card slot. The programmer keyboard is used to select the relevant programming operation and then the programmer operates from the information stored on the card.
|
|
Programmer Rear Panel View |
|
|

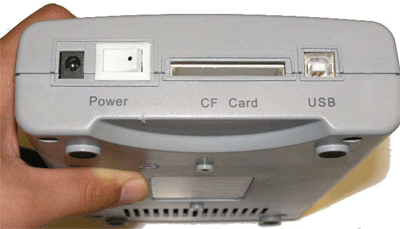

The Rear Panel connectors are as follows:
- DC Power Connector
- On/OFF Power Switch
- Compact Flash Card Slot
- USB Connector
|
|
Advanced hardware features |
|
- Advanced hardware design minimizes ground bounce noise enabling programming of low voltage, down to 1.5 volts, devices reliably.
-
Only IC manufacturer approved programming algorithms are used for high reliability.
-
± 5% and ± 10% Vcc verification enhances programming reliability.
|
|
Pin continuity and wrong chip insertion checks |
|
- Pin continuity and wrong chip insertion check prevent chips from accidental damage.
|
|
Over-current and over-voltage protection |
|
- Over-current and over-voltage protection for safety of the chip and programmer hardware.
|
|
Specifications |
|
- Device Supported:
-
EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration Serial PROM, FLASH Memory (NOR and NAND), BPROM, NOVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic.
-
Socket Adapters Supported:
-
DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, VQFP, TSOP, TSOPII, SOP, P SOP, TSSOP, SON, EBGA, FBGA, VFBGA, µBGA, CSP, SCSP, etc.
-
PC Interface: USB
-
Stand-alone mode operation Storage Media: Compact Flash Card (Optional)
-
Optional Accessories: PEP3000 Pin-driver Expansion Pack, Socket Adapters, Compact Flash Card
|
|
Interchangeable Device Socket Boards |
|
|
The programmer features interchangeable Socket Boards which simply plug into the programmer:
- Supplied as standard with a 48-pin Dual-in-line (DIL-48) Zero-Insertion Force Socket Board
- Other Socket Boards and adaptors available to suit PLCC, TQFP, SPIC packages etc.
|
|
Device updates |
|
- XELTEK updates software and device algorithm regularly.
-
You may download the current software version free of charge at http://www.xeltek-europe.com.
-
Updates are available by mail at a nominal charge.
-
XELTEK also adds devices upon customer's request at its option.
|
|
Hardware & Electrical Specifications |
|
|
Items included: programming unit with DIP48 pin socket, AC adapter, Program CD, USB Cable, User's Guide
|
- · Power supply: Input 100V-240VAC,Output 12VDC/2.5 Amp.
-
· Programmer unit dimension: 240(L) x 150(W) x 50(H) mm
-
· Gross shipping weight: 5 Lbs.
|
|
Warranty Support |
|
- Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase. Online Technical Support is also available 24 hours or you may call us during our business hours Monday through Friday 9AM to 5:30PM (GMT+01:00).
|
| |
