TRP-C39S - Fibre to RS-232/422/485 Isolated Converter, SC single mode





The TRP-C39S fibre converter allows RS-232/422/485 signals to be bi-directionally converted to fibre optic. This extends the line signal distance by up to 40km over single mode.

By using fibre optic transmission technology, the TRP-C39S ensures stable and error free data transmission in industrial environments where electrical noise is present, especially over long distances.

The high bandwidth fibre connections solve problems with electrical noise and different ground potentials over long transmission.

The TRP-C39S supports auto configuration in data format, baud rate and RS-485 data direction flow control. It also features 3kv DC isolation and internal surge protection.

The industry standard DIN rail design enables fast and professional installation.



Features

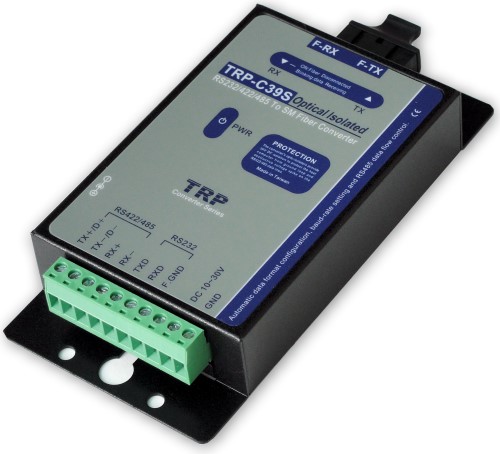

Product photo
Features
Specifications

Product photo

Features
  • Wide input range DC power supply
  • SC single mode fiber port
  • Auto direction flow control on RS-485
  • Auto RS-232/422/485 signals switching
  • Auto data format detecting
  • Auto baud rate switching from 300bps to 115.2Kbps
  • Support 3000V DC isolation protection
  • Support surge protection on RS-422/485 data lines
  • Power/TX/RX mode LED indicator
  • Fibre transmission distance up to 40km
  • DIN rail or panel mount support
Specifications
  • Power Input Voltage: DC +10V to +30V
  • Interface: RS-232/422/485 auto switching
  • RS-232: 3 full-duplex (TXD, RXD, GND)
  • RS-422: Differential 4 full-duplex wires
  • RS-485: Differential 2 half-duplex wires
  • Cable: Fiber cable (9/125um)
  • Wavelength: 1310(FPLD) nM
  • Distance: Fibre up to 40KM and RS-422/485 up to 4000ft (1200m )
  • RS-422/485 line protection: Against surge, short circuit, voltage peak
  • Connection type: Screw terminal for maximum AWG #12~30 wires
  • Power supply: Screw terminal, or external DC adapter
  • Power consumption: 1.6W
  • Isolation Voltage: 3kv DC
  • Operating environment: 0 to 60℃
  • Storage temperature: -20 to 70℃
  • Humidity: 10~90% Non-condensing
  • Dimension: 151mm X 75mm X 26mm
  • Weight: 388g



Ordering Information...




TRP-C39S - Fibre to RS-232/422/485 Isolated Converter, SC single mode

Manufacturer:  Trycom Technology
Order Code:  TRP-C39S
Discontinued Product
Product Information
Product:  TRP-C39S - Fibre to RS-232/422/485 Isolated Converter, SC single mode
Manufacturer:  Trycom Technology
Order Code:  TRP-C39S
Discontinued Product


Downloads
Download View Downloads for this Product


Associated Products View All
TRP-TSNAP - DIN rail mounting adapter >>
