Olimex - SAM7-H256 Header Development Board for AT91SAM7S256 ARM7TDMI-S MC

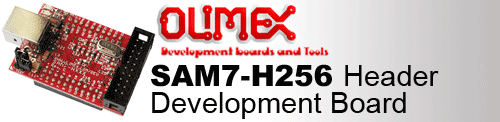

Olimex - SAM7-H256 Header Development Board for AT91SAM7S256 ARM7TDMI-S Microcontroller



Features



Features
  • MCU: AT91SAM7S256 16/32 bit ARM7TDMI™ with 256K Bytes Program Flash, 64K Bytes RAM, USB 2.0, RTT, 10 bit ADC 384 ksps, 2x UARTs, TWI (I2C), SPI, 3x 32bit TIMERS, 4x PWM, SSC, WDT, PDC (DMA) for all peripherals, up to 60MHz operation
  • Perfect solution for building custom USB peripherials
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • USB connector
  • RESET circuit
  • RESET button
  • Status LED
  • TST jumper, for SAM-BA downloading
  • On board voltage regulator 3.3V with up to 800mA current
  • Single power supply: through USB or from extension header pin
  • Power supply LED
  • Power supply filtering capacitor
  • 18.432 Mhz crystal on socket
  • Extension headers for all uC ports + RST and power supply
  • PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
  • Dimensions: 50 x 34 mm (2 x 1.3")
  • Distance between the headers: 25.4 mm (1")




Device Support (by family)



This product supports devices from the families listed below:

Atmel Corporation:
  • AT91SAM7 (ARM7-TDMI) Microcontroller Family



Device Support (by manufacturer / programming algorithm)




Atmel Corporation

JTAG - In System Programming (ISP) via JTAG Debug Port (chargeable upgrade for Equinox Programmers):
AT91SAM7 (ARM7-TDMI) Microcontroller Family:
AT91SAM7S256



Ordering Information...




Olimex - SAM7-H256 Header Development Board for AT91SAM7S256 ARM7TDMI-S MC
Olimex - SAM7-H256 Header Development Board for AT91SAM7S256 ARM7TDMI-S Microcontroller
Manufacturer:  Olimex
Order Code:  OLI-SAM7H256
Quantity Price (GBP) [Excl. VAT]
1 - 4
18.40
5 and above
16.56

Availability:
0 in stock
5 days delivery




Product Information
Product:  Olimex - SAM7-H256 Header Development Board for AT91SAM7S256 ARM7TDMI-S MC
Manufacturer:  Olimex
Order Code:  OLI-SAM7H256
Availability:  0 in stock
5 days delivery
Price:   18.40 (GBP)
 [Excl. VAT]
