Atmel STK600 - Development Kit For AVR/AVR32




The Atmel AVR® STK600 is a complete starter kit and development system for the AVR and AVR32 flash microcontrollers from ATMEL Corporation. It is designed to give designers a quick start to develop code on the AVR, combined with advanced features for using the starter kit to prototype and test new designs. STK600 is shipped with a ATmega2560 device board.

Socket and adapter boards are available for the whole range of AVR's, from 8- to 144-pins devices. The socket and adaptor boards must be bought separately.

Equinox stock a complete range of 'Socket Adaptors' for the STK600 kit - please refer to the Associated Product section for further details.



Features



Product picture

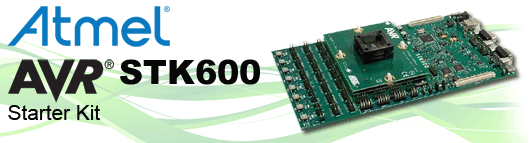

The above picture shows the STK600 kit with the 'TQFP64 Adaptor' fitted. This adaptor does NOT come as standard with the kit.

STK600 Socket Adaptors

The Atmel STK600 Starter Kit supports most AVR, XMEGA AVR and AVR32 devices. A range of  'Socket Modules' is available for the STK600 which allow the kit to support all the various device packages e.g. PLCC, TQFP, SOIC etc.

The available STK600 adaptors include the following:

  • ATSTK600-DIP40
  • ATSTK600-TQFP32
  • ATSTK600-TQFP64
  • ATSTK600-TQFP100
  • ATSTK600-TQFP144
  • ATSTK600-Tinyx3U

Please note:
The STK600 kit comes with an ATmega2560 device board as standard with the ATmega2560 physically soldered to the PCB i.e. it is not socketed.




Device Support (by family)



This product supports devices from the families listed below:

Atmel (Microchip):
  • AT32 AVR - FLASH Microcontroller Family
  • AT90CAN - AVR with on-chip CAN : AVR microcontroller with on-chip CAN
  • AT90PWM - AVR Microcontroller Family
  • AT90S AVR  - FLASH Microcontroller Family
  • ATmega AVR - FLASH Microcontroller Family
  • ATmegaxxxP 'PICO Power' AVR Microcontroller Family
  • ATtiny AVR - FLASH Microcontroller Family
  • ATxmega AVR - FLASH Microcontroller Family
  • XMEGA AVR : Atmel XMEGA AVR - FLASH Microcontroller Family



Please note:
Not all devices may be supported within a family.
Please see the Detailed Device Support List for a list of all devices which the product supports.




Ordering Information...




Atmel STK600 - Development Kit For AVR/AVR32
The Atmel AVR® STK600 is a complete starter kit and development system for the AVR and AVR32 flash microcontrollers from ATMEL Corporation.
Manufacturer:  Atmel (Microchip)
Order Code:  AT-STK600
Quantity Price (GBP) [Excl. VAT]
1 and above
155.00

Availability:
0 in stock
10 days delivery

STK600 - Socket Adaptors
We stock a comprehensive range of Socket Adaptors for the STK600 Starter Kit. Please select the required adaptor from the list below.

Atmel Socket Adaptor - ATSTK600-DIP40
The STK600-DIP package contains a socket board and adapter boards for PDIP devices, and is an expansion module for STK600.
Order Code:  AT-STK600DIP40
Quantity Price (GBP) [Excl. VAT]
1 and above
65.00

Availability:
0 in stock
10 days delivery
Atmel Socket Adaptor - ATSTK600-Tinyx3U
The STK600-Tinyx3U package contains an adaptor board for the ATtinyX3U devices, and is an expansion module for STK600.
Order Code:  AT-STK600Tinyx3U
Quantity Price (GBP) [Excl. VAT]
1 and above
85.00

Availability:
0 in stock
10 days delivery
Atmel Socket Adaptor - ATSTK600-TQFP100
The STK600-TQFP100 package contains a socket board and adapter boards for 100-pins TQFP 0.5 mm pitch devices, and is an expansion module for STK600.
Order Code:  AT-STK600TQFP100
Quantity Price (GBP) [Excl. VAT]
1 and above
65.00

Availability:
5 in stock
Atmel Socket Adaptor - ATSTK600-TQFP144
The STK600-TQFP144 package contains a socket board and adapter boards for 144-pins TQFP 0.5 mm pitch devices, and is an expansion module for STK600.
Order Code:  AT-STK600TQFP144
Quantity Price (GBP) [Excl. VAT]
1 and above
65.00

Availability:
0 in stock
10 days delivery
Atmel Socket Adaptor - ATSTK600-TQFP32
The STK600-TQFP32 package contains a socket board and adapter boards for 32-pins TQFP 0.5 mm pitch devices, and is an expansion module for STK600.
Order Code:  AT-STK600TQFP32
Quantity Price (GBP) [Excl. VAT]
1 and above
65.00

Availability:
2 in stock
Atmel Socket Adaptor - ATSTK600-TQFP64
The STK600-TQFP64 package contains a socket board and adapter boards for 64-pins TQFP 0.8 mm pitch devices, and is an expansion module for STK600.
Order Code:  AT-STK600TQFP64
Quantity Price (GBP) [Excl. VAT]
1 and above
79.95

Availability:
0 in stock
10 days delivery
Atmel STK600 Socket Adaptors supporting XMEGA AVR microcontrollers
This is an overview product which describes the 'Socket Adaptors' and 'Routing Cards' available for to support the Atmel ATxmega AVR microcontroller family.
