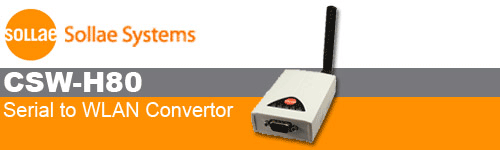

Sollae CSW-H80 - Serial WLAN Converter





The CSW-H80 is a wireless converter for serial devices. It adds network connectivity to devices by processing TCP/IP protocol which is required to send and receive data over the Internet. The CSW-H80 also makes it possible to extend the distance of serial communications without any change of your legacy systems or replace direct serial connection. This is a simple and easy way to bring the advantages of remote control and management to serial devices. By using the CSW-H80 devices can be wirelessly controlled, managed and monitored over the Internet. Please note - this has been replaced by CSW-H85K.






Features



Highlights
  • Remote Monitor and Control serial devices
  • Supports IEEE802.11b/g
  • 2dBi dipole antenna (various types of antennas available)
  • RS232 x 1 (up to 230,400bps, DB9-M interface)
  • Security function : IP filtering, Password
  • Flexible configuration and network communication by 'AT Commands' (patent)
  • Supports communication with variety of TCP/UDP hosts (TCP Server/Client, UDP)
  • Variety of communication status checkup(debugging mode, ezManager, Telnet)
  • Supports DHCP for dynamic IP environment
  • Supports 'DNS' protocol for simple connection to the Internet
  • Supports Dynamic DNS (DDNS) : available as Server with dynamic IP environment
  • IP Change Trap feature : useful with dynamic IP environment
  • Telnet COM Port Control Option (RFC 2217)
  • Easy configuration utility via network and serial for Windows OS (ezManager)
  • Virtual COM Port Redirector 'ezVSP' for Windows OS (provided free of charge)
  • Firmware is upgradable through the serial port
  • Environmentally-friendly RoHS compliant

Features / Specifications

Serial Physical Interface

Serial Interface

1 x RS232 Port

RXD, TXD, RTS, CTS, DTR, DSR

¡¾15KV ESD Protection

Connector

1 x DB9M Connector

Serial Port Property

Baudrate

300 bps ¡­ 230400 bps

Data Bits

5, 6, 7, 8 bits

Parity

None, Even, Odd, Mark, Space

Stop Bit

1 , 1.5 , 2

Flow Control

RTS/CTS Hardware

Network Physical Interface

Network Interface

IEEE802.11b/g wireless LAN

supplied with dipole 2dBi Antenna

SMA Female Connector for antenna

Software Functions

Protocols

TCP, UDP, IP, ICMP, ARP, TELNET

DHCP, DNS, DDNS

Telnet COM Port Control Option (RFC 2217)

Security

WEP

IP & MAC filtering - Restrict host or network

Password for Configuring

Communication

TCP server (T2S)

Mode

TCP client (COD)

¡¡

TCP server/client with AT command (ATC) - Patent

¡¡

UDP mode (U2S)

Additional Functions

Remote Debug Function

Indicators(LEDs)

Power

Red

Status

Yellow, The current status

wireless LAN Link

Green

wireless LAN RXD

Yellow

wireless LAN TXD

Green

Processors

CPU

ARM7 Core

ROM

512K bytes Flash Memory

RAM

128K bytes SRAM

Management

ezManager

Configuration and Monitoring through ethernet and serial

Telnet

Telnet Login

AT Command

Configuring in ATC mode - Patent

Supplementary Software

ezManager - Configuration Tool for Windows through wLAN and serial

ezVSP - Serial to Network Virtual Driver for Windows

ezTerm - Simple TCP/IP  Communication Test Tool

wflash - Firmware Upgrade Utility for Windows through serial port

Dimension

Size

93mm x 57mm x 24mm (without antenna)

Body Netweight

about 66g (without antenna), about 79g (with antenna)

Operating Environment

Input Voltage

DC 5¡¾0.5V

Power Consumption

300mA Typical

Operating Temperature

¡¡




Ordering Information...




Sollae CSW-H80 - Serial WLAN Converter
The CSW-H80 is a wireless converter for serial devices. It adds network connectivity to devices by processing TCP/IP protocol which is required to send and receive data over the Internet. PLEASE NOTE - THIS HAS BEEN REPLACED BY CSW-H85K.
Manufacturer:  Sollae Systems
Order Code:  SOL-CSW-H80
Quantity Price (GBP) [Excl. VAT]
1 - 4
84.00
5 and above
79.80

Availability:
3 in stock
Product Information
Product:  Sollae CSW-H80 - Serial WLAN Converter
Manufacturer:  Sollae Systems
Order Code:  SOL-CSW-H80
Availability:  3 in stock
Price:   84.00 (GBP)
 [Excl. VAT]
