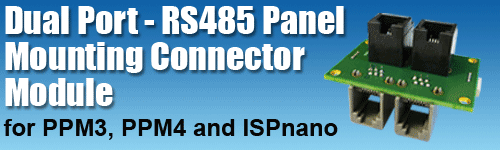

This module is a 'Dual Port - RS485 Connector Module' which is designed to mount on the rear panel of a Test Fixture enclosure. It features two RJ11 connectors which are accessible out the rear of the panel allowing the RJ11 cable from the Equinox 'RS485 Converter' to be connected. Internally it features two RJ11 connectors which allows for an RJ11 flat cable to be connected between the connector module and the first programmer on the RS485 network.

This connector module is suitable for use with the PPM3-MK2, PPM4-MK1 and ISPnano range of programmers.
