ISPjuno MK1 - Portable In-System (ISP) Programmer |
|
|
|
|
|
| |

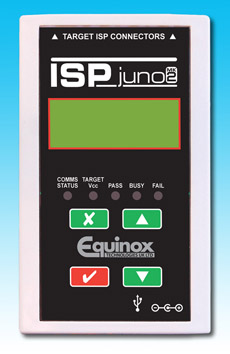

The ISPjuno is a portable ISP programmer designed for field-service and production In-System Programming (ISP) applications. The programmer is capable of operating in ‘Standalone Mode’ (without PC) allowing an operator to select from 1 of 64 ‘Standalone Programming Projects’ using the display and keypad. A single ‘Autoprogram’ key is then used to repetitively program the selected project.

|
| |
|
|
 |
ISPjuno Programmer Features |
|
- Portable In-System (ISP) Programmer
- Ideal for Field-service or Production programming applications
- Supports ‘Standalone’ operation - no PC required after programmer has been configured with user projects
- Capable of storing up to 64 completely independent ‘Standalone Programming Projects’.
- Supports In-system Programming (ISP) of many different programmable microcontrollers, serial EEPROM / FLASH memory devices and other custom devices (Device library required)
- Supports programming via SPI, JTAG, I2C, UART, XMEGA PDI, ATtiny TPI, ATtiny UPDI
- Supports programming of devices between 1.8V and 5.0V
- Interchangeable Target Interface Modules (TIM) available
- High-speed USB connection to the PC (plus legacy RS232 COM port)
- Programmer can be powered from: External power supply via DC jack socket or External USB Power Pack
|
|

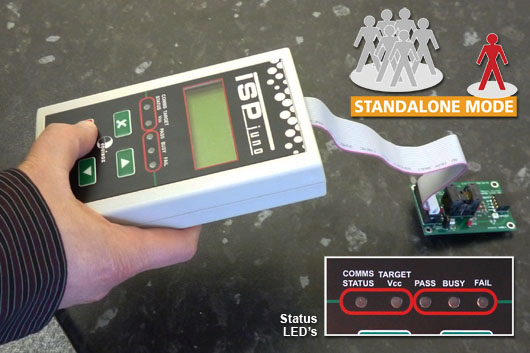

Programmer in use |
|
|
|
| |
| |
Device Support (by manufacturer) |
|
|
|
|
|
| This product supports devices from the manufacturers listed below: |
| |
Adesto
Atmel (Microchip)
Dallas Semiconductor (Maxim)
Exel Semiconductor (Rohm)
Holtek Semiconductor
IC Microsystems
ISSI
Microchip
NXP (Philips)
ON Semiconductors (Catalyst)
Ramtron
Rohm
Seiko Instruments
Sigma Designs
STMicroelectronics
Xicor
|
|
The Device Support is different for each version of the ISPjuno programmer. Please see table above.
|
| |
|
Please note:
Not all devices may be supported within a family.
Please see the Detailed Device Support List for a list of all devices which the product supports.
|
| |
|  |
|
