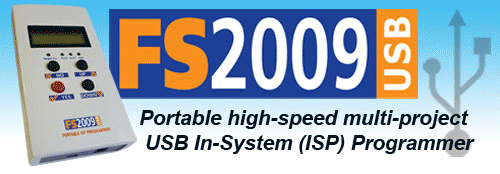

FS2009USB - Portable high-speed multi-project USB In-System (ISP) Programmer


The FS2009USB is a portable ISP programmer designed for development, field-service and production programming applications. The programmer is capable of operating in 'Standalone Mode' (without PC) allowing an operator to select from 1 of 64  'Standalone Programming Projects' using the display and keypad. A single 'Autoprogram' key is then used to repetitively program the selected project.

The FS2009USB programmer supports high-speed In-System Programming (ISP) of the on-chip FLASH / EEPROM memory of many FLASH microcontroller devices including 8051, Atmel AVR, NXP 8051 & ARM and Zensys microcontrollers.  Support for the programming of many 24xxx Serial EEPROM Memories via I2C is also offered along with Atmel AT91SAM7 support.

Device Support Software Downloads News Software Upgrades FS2009 Overview

Application Note Product Manuals Firmware Upgrade Drivers Product Leaflets



FS2009 Key Features
Supported Programmer Control Methods
Target Interface Capabilities
Standalone Programming Mode
Development Mode
Project Upload Mode
ISP Header Support
Programmer / Target System - Power Supply Options
JTAG ISP Support for Atmel ATmega AVR Microcontrollers
Configurable Frequency Output Clock
Spare Programmer I/O pins
CE / FCC Approved Product
Fast Programming Times
Standalone Mode - Program -> Test -> Re-Program
FS2009USB - product versions
Device Support for each FS2009USB version
Typical applications
Device Support

FS2009 Key Features
  • Portable In-System (ISP) Programmer
  • Ideal for Development, Production or Field use
  • Supports ISP of Atmel 8051 FLASH microcontrollers (AT89Sxxx)
  • Supports ISP of Atmel AVR FLASH Microcontrollers (ATmega, AT90USB, AT90CAN, AT90S, ATtiny)
  • Supports ISP of NXP (Philips) P89C51Rx2 and P89C66x FLASH Microcontrollers
  • Supports ISP of many 24Cxxx Serial EEPROM Memories via the I2C interface (chargeable upgrade)
  • Supports ISP of AT91SAM7 devices (chargeable upgrade)
  • Supports programming via SPI and UART protocols as standard
  • Chargeable upgrade available for programming via JTAG and I2C
  • Supports 'Standalone' operation i.e. no PC required after programmer has been configured
  • Very fast programming speeds suitable for high-throughput production environments
  • Up to 64 individual Programming Projects can be uploaded to the non-volatile On-board FLASH Store (4Mbytes).
  • Robust I/O driver stage
  • Individually configurable programmer I/O pins
  • Programmable frequency generator output on SCK2 pin - supports external clocking of ATmega, and ATtiny AVR devices to speed up programming
  • Programmer firmware is field upgradeable to cater for future algorithms
  • CE / FCC / RoHS approved product

Supported Programmer Control Methods

The programmer supports the following control methods:

  • Standalone Mode - Keypad and LCD controlled (no PC)
  • Development Mode - Controlled via PC Software - Equinox Development Suite (EDS)
  • Project Upload Mode - PC Controlled
  • ISP-PRO - Production Software (chargeable upgrade)
  • ASCII Text Communications Protocol (RS232 Serial control - chargeable upgrade)

Target Interface Capabilities

The FS2009USB supports the following Target Interfaces / Algorithms:

  • Atmel AVR - SPI - Serial Programming Mode
  • Atmel AT89S - SPI - Serial Programming Mode
  • Atmel ATtiny11/12/15 High-Voltage Serial Programming Mode
  • UART Boot Loader - for Atmel T89C51Rx2 8051 microcontrollers
  • UART Boot Loader - for Philips P89C51Rx2 and P89C66x 8051 microcontrollers
  • Atmel ATmega JTAG In-System Programming (ISP) - chargeable upgrade
  • 24Cxxx Serial EEPROMs I2C (Two-Wire Interface) - chargeable upgrade
  • AT91SAM7 JTAG In-System Programming (ISP) - chargeable upgrade

Standalone Programming Mode

In ‘Standalone Mode’, the FS2009USB is controlled via the push buttons on the front panel of the programmer - no PC connection is required. The programmer LCD and the LED Status Indicators are used to display the current status of the programmer. It is possible to select from 1 of 64 previously uploaded Programming Projects and then to repeatedly execute this project to program a batch of devices.

In Standalone Mode...

  • Programmer is completely portable as no PC connection is required
  • Programmer supports storage up to 64 independent Programming Projects in the non-volatile On-board 4Mbits FLASH Memory Store .
  • The operator simply selects the required project using LCD and keypad
  • Each project name is version controlled showing the project name, date, firmware revision and build date. e.g. myproject-240402-
  • Single key auto-program mode
  • Simple PASS / FAIL response with diagnostics on program failure
  • Operator can not inadvertently change the programming data or settings

 To configure the programmer for Standalone Mode...

  • A Project Collection containing 1 - 64 Programming Projects must be uploaded on a one-off basis to the programmer using the EQTools PC software
  • This is a single file which can be easily distributed to remote sites. It contains all projects, Hex File data, Fuse information etc.

Development Mode

  • Programmer is controlled from the PC via EQTools - Equinox Development Suite (EDS) Software
  • Ideal for use in a Development Environment
  • Supports manual writing / reading of FLASH / EEPROM memory areas
  • Supports manual writing / reading of Fuses and Security Fuses
  • All projects can be developed and tested on a real device before uploading a Programming Project to the programmer
  • Tested Programming Projects can then be uploaded to the Programmer for use in Standalone Mode

Project Upload Mode


  • This mode allows a pre-compile Project Collection to be uploaded to the on-board 'FLASH Memory Store'.
  • The programmer can store up to 32 MBits of Project Information which is held indefinitely in non-volatile FLASH Memory.
  • It is possible to upload up to 64 Programming Projects to the programmer, each of which can be for a different target device.
  • A simple 'Upload Wizard' allows field personnel to upload single or multiple Programming Projects as part of Project Collections.

ISP Header Support

The FS2009USB programmer features all the popular In System Programming (ISP) Headers including:

  • Atmel 10-way SPI Header (for Atmel AVR and AT89S microcontrollers)
  • Equinox 10-way Header (for Atmel AVR and AT89S microcontrollers) and I2C Serial EEPROMs
  • Atmel 6-way SPI Header (for Atmel AVR and AT89S microcontrollers)
  • Atmel 10-way JTAG ISP Header (for JTAG ISP of Atmel ATmega AVR microcontrollers)
  • Equinox 10-way UART Header (for Atmel AT89C51Rx2 and Philips P89C51RX2 and P89C66x microcontrollers)

This allows the programmer to interface directly to most target systems without requiring an external cable convertor.

Please refer to the ISP Header Overview page for full details of all available ISP Headers and ISP Cables.

Programmer / Target System - Power Supply Options

The Programmer supports the following powering options:

  • Target System can supply power to the programmer: 3.0 - 5.0V @ 50mA
  • Programmer can supply power to the Target System: 5.0V @ 300mA
  • Programmer and Target System can be Independently Powered

The Programmer comes with a 9V DC Power Supply which is regulated down to +5.0V inside the programmer.

JTAG ISP Support for Atmel ATmega AVR Microcontrollers

The FS2009USB supports programming of the Atmel ATmega AVR Microcontroller Family using the JTAG algorithm. This chargeable upgrade allows the FS2009 to program the ATmega devices at high speed via the JTAG port of the Target Device.

The advantages of JTAG In-System Programming are:

  • Much faster programming times (up to x4 times faster than SPI)
  • JTAG port can also be used as a 'Debug Port' during product development

Configurable Frequency Output Clock

The FS2009USB is capable of outputting a continuous square wave at various frequencies on the programmer SCK2 pin.

This clock frequncy could be used for the following purposes:

  • To toggle the STROBE pin on a Watchdog Timer IC to stop the IC from timing out during the In-System Programming operation.
  • To provide a clock to an Atmel ATmega microcontroller to resurrect a device which has an incorrectly configured Internal Oscillator.

Spare Programmer I/O pins

  • In SPI mode, there are 2 x Spare I/O pins for custom use
  • In UART mode, there is 1 x Spare I/O pins for custom use
  • The spare I/O pin(s) can be used for controlling circuitry on the user Target System including Chip Selects, additional RESET control lines, Watchdog Timers etc.

CE / FCC Approved Product

The FS2009USB is a CE /  FCC and RoHS approved product.

Fast Programming Times

The FS2009USB supports fast programming of Target Devices via the SPI, JTAG and UART algorithms.

Standalone Mode - Program -> Test -> Re-Program

The programmer is capable of performing a multi-project Programming Sequence in Standalone Mode as follows:

  • Program Test Firmware
  • Execute Target Firmware
  • Wait for Target Firmware to finish
  • Program Production Firmware

This powerful functionality allows the programmer to be used as part of an In-Circuit Test procedure where the Target Firmware must be allowed to execute in order to eg. calculate some calibration values. The programmer initially programs some 'Test Firmware' into the Target Device and then allows the Target to run this firmware and waits for this firmware to finish executing. The real 'Production Firmware' is then programmed into the Target Device.

FS2009USB - product versions

The FS2009USB programmer is now available in three different versions, each offering different device support. Please refer to the table below for an overview of each version.

Programmer version



· Supports programming of Atmel AVR devices via the SPI interface only.

· Supports programming of Atmel ATtiny devices via the ‘High-voltage Serial Programming Mode’.

· Supports Atmel AT89S, AT89C51Rxx, AT89Sxxxx microcontrollers.

· Supports NXP P89X51Rx2 devices

· Supports Zensys 100 / 200 / 300 series devices.


· Dedicated programmer supporting programming of the Atmel AVR family via the JTAG interface only.


· Dedicated programmer supporting many ARM microcontroller devices.

· Atmel ARM7 microcontroller family including AT91 SAM7S SAM7SE / SAM7A / SAM7L / SAM7X / SAM7XC ARM7 families

· NXP LPC21xx ARM7 families

· ST STM32F100Rx Cortex-M3 ARM family

· Includes a special 20-way IDC connector cable for interfacing to AT91SAM7 Target Boards.

Please note: It is possible to upgrade any version of the FS2009USB programmer so it supports other devices as well.

Device Support for each FS2009USB version

The table below details which device families are supported by each version of the programmer.

FS2009 Device Support

Typical applications
  • Field programming - supports up to 64 different customer firmware / product versions
  • Low to medium volume production programming
  • Re-programming of batches in production


Device Support (by manufacturer)

This product supports devices from the manufacturers listed below:
Atmel Corporation
Dallas Semiconductor (Maxim)
Exel Semiconductor (Rohm)
Holtek Semiconductor
IC Microsystems
NXP (Philips)
ON Semiconductors (Catalyst)
Seiko Instruments
Sigma Designs

The Device Support is different for each version of the FS2009 programmer. Please see table above.


Please note:
Not all devices may be supported within a family.
Please see the Detailed Device Support List for a list of all devices which the product supports.


Ordering Information...

FS2009USB - Portable high-speed multi-project USB In-System (ISP) Programmer
FS2009USB - Portable high-speed multi-project USB In-System (ISP) Programmer with integrated USB port. Standard device libraries.
Manufacturer:  Equinox Technologies
Order Code:
Equinox:  FS2009USB(STD)
Quantity Price (GBP) [Excl. VAT]
1 - 4
5 - 9
10 - 24
25 and above

6 in stock

For further information about related products, please see the Overview Product.

Product Information
Product:  FS2009USB - Portable high-speed multi-project USB In-System (ISP) Programmer
Manufacturer:  Equinox Technologies
Order Code:
Equinox:  FS2009USB(STD)
Availability:  6 in stock
Price:   351.23 (GBP)
 [Excl. VAT]
