ISP Header OVERVIEW





This page details the various so-called 'ISP Headers' which can be used in conjunction with Equinox Programmers and Atmel Development Boards. Over the years, a number of different header styles and pin-outs have evolved to suit particular programming requirements. The most popular headers are detailed below.

ISP Programming Cables




Frequently Asked Questions (FAQ):



What is an ISP Header ?
What is an 'IDC Box Header' ?
What versions of the ISP Header are available ?

What is an ISP Header ?

An 'ISP Header' is the connector used to interface the cable which carries the programming signals from an external ISP Programmer to the Target System Circuit Board / Microcontroller. The programming signals are routed via the ISP Header to the Target Device on the Target System Circuit Board.

The header is usually in the form of  either a 6-way or 10-way IDC 'box header' with 2 rows of pins on a 0.1" pitch. However, it can also be a Single-in-Line SIL Pin Header or in fact any form of custom connector.

What is an 'IDC Box Header' ?

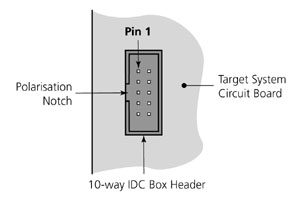

An 'IDC Box Header' is an off-the-shelf connector which interfaces to a mating IDC In-Line Plug connector on the end of a ribbon cable. The connector is made up of either 2 rows of 3 pins (6-way) or 2 rows of 5 pins (10-way) with 0.1" spacing between each pin. The term 'Box Header' is used as this type of connector features a plastic shroud (box) around the entire connector with a 'polarisation notch' which prevents the mating 'ISP Cable' from being accidentally plugged in the wrong way around.

What versions of the ISP Header are available ?

Equinox programmers currently support the following 'ISP Headers':

  • 10-way Atmel SPI pin-out
  • 10-way Equinox pin-out
  • 6-way Atmel SPI pin-out
  • 10-way Atmel - ATmega JTAG pin-out
  • 10-way Equinox - ATtiny HV pin-out
  • Atmel / Philips 89C51Rx2 / 66x - UART Boot Loader pin-out
  • 20-way ARM JTAG Debug pin-out (using special connector cable)

Please see the 'Supported ISP Headers' section for further details of each of these pin-outs.



Supported ISP Headers
The Equinox range of programmers each support some or all of the 'ISP Headers' detailed in the table below.

ISP Header - 10-way ATtiny High Voltage Serial Programming
This ISP Header is used to program the Atmel ATtiny 11/12/15 AVR microcontrollers using the 'High Voltage Serial Programming' algorithm. A +12V Vpp is applied to the RESET pin to enter 'Programming Mode'.
Manufacturer:  Equinox Technologies
ISP Header - 10-way Equinox SPI pin-out
This is the recommend ISP pin-out for all new designs. It supports SPI In-System Programming of all Atmel AVR and 8051 devices.
Manufacturer:  Equinox Technologies
ISP Header - 10-way IDC - Atmel / Philips UART Bootloader pin-out
This header is used for the Atmel AT89C51Rx2 and Philips P89CRx2 / P89C66x families. In-System Programming (ISP) is implemented using the on-chip UART pins RXD / TXD + control of the PSEN and RESET pins.
Manufacturer:  Equinox Technologies
ISP Header - 10-way IDC - Atmel SPI pin-out
This is the pin-out of the Atmel 10-way ISP Header used on many Atmel develoment boards including the STK500.
Manufacturer:  Equinox Technologies
ISP Header - 10-way JTAG for Atmel ATmega microcontrollers
This header is used for In-System Programming (ISP) and / or In-System Debugging (ISD) of Atmel ATmega AVR microcontrollers via their on-chip JTAG port.
Manufacturer:  Equinox Technologies
ISP Header - 20-way IDC ARM Debug Connector
This header is used for In-System Programming (ISP) and / or In-System Debugging (ISD) of any ARM microcontroller via the on-chip JTAG port.
Manufacturer:  Equinox Technologies
ISP Header - 6-way IDC - Atmel SPI pin-out
The 'Atmel 6-way ISP Header' is popular for Target Board designs where PCB board space is at a premium. It is only suitable for SPI programming of Atmel AVR and AT89S devices.
Manufacturer:  Equinox Technologies
