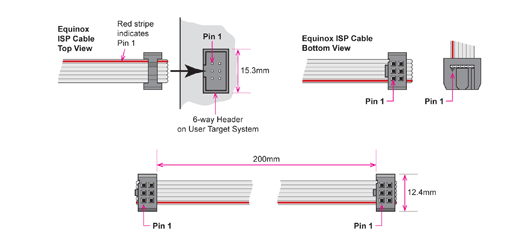

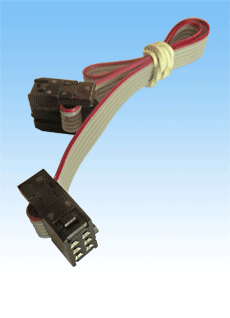

The CAB-ISP6W200 is a 6-way In-System Programming (ISP) ribbon cable designed to connect from any ISP programmer which features a 6-way IDC connector to a 6-way 0.1" pitch IDC connector on a suitable Target System. The cable features 200mm of flat ribbon cable with a 6-way IDC 0.1" pitch female connector on each end. The IDC connectors are fitted with 'cable grips' and are bump polarised to prevent the connector being plugged in the wrong way around.

The CAB-ISP6W200 cable is suitable for use with any Equinox ISP programmer and also with any other programmer or 'Starter Kit' which features the 6-way 0.1" pitch IDC connector. eg. Atmel AVRISP, STK500, STK501 etc.
