Spare 10-way In-System Programming (ISP) Cable for Equinox Programmers (200mm)

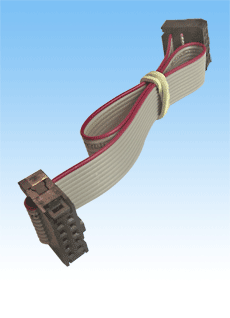

The CAB-ISP10W200 is a 10-way In-System Programming (ISP) ribbon cable designed to connect from any ISP programmer  which features a 10-way IDC connector to a 10-way 0.1" pitch IDC connector on a suitable Target System. The cable features 200mm of flat ribbon cable with a 10-way IDC 0.1" pitch female connector on each end. The IDC connectors are fitted with 'cable grips' and are bump polarised to prevent the connector being plugged in the wrong way around.

The CAB-ISP10W200 cable is suitable for use with any Equinox ISP programmer and also with any programmer or 'Starter Kit' which features the 10-way 0.1" pitch IDC connector. eg. Atmel STK500, STK501 etc.




Features



Specification
  • Cable length (connector to connector): 200mm
  • Cable type: 10-way flat ribbon cable (red stripe denotes pin 1)
  • Each end of the cable is terminated with a 10-way 0.1" pitch IDC female connector
  • Connectors are fitted with 'cable grips' for added resilience.
  • Connectors are bump-polarised to stop the connector being plugged in the wrong way around

This cable is compatible with the following equipment
  • Any Equinox ISP programmer with a 10-way 0.1" pitch IDC connector eg. Equinox EPSILON5, EPSILON5-MK4, FS2000A, FS2003, FS2009, FS2009USB, PPM3-MK2, PPM4-MK4
  • Any ISP Starter Kit or Development Board which features a 10-way IDC connector eg. Atmel STK500, STK501, STK502, STK505 etc
  • Any other programmer or Target PCB which features a 0.1" pitch 10-way IDC male connector.

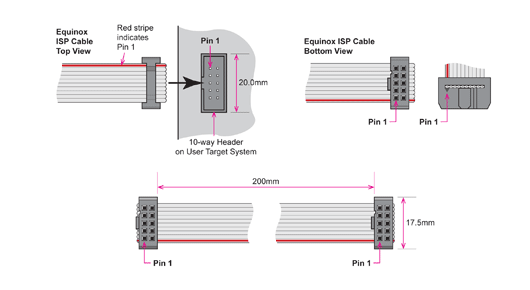

Cable layout




Ordering Information...




Spare 10-way In-System Programming (ISP) Cable for Equinox Programmers (200mm)
Spare 10-way In-System Programming (ISP) Cable for Equinox Programmers (200mm)
Manufacturer:  Equinox Technologies
Order Code:
Equinox:  CAB-ISP10W200
 483-1030-ND
Quantity Price (GBP) [Excl. VAT]
1 - 2
4.95
3 - 5
4.46
6 and above
4.21

Availability:
0 in stock
10 days delivery
Product Information
Product:  Spare 10-way In-System Programming (ISP) Cable for Equinox Programmers (200mm)
Manufacturer:  Equinox Technologies
Order Code:
Equinox:  CAB-ISP10W200
 483-1030-ND
Availability:  0 in stock
10 days delivery
Price:   4.95 (GBP)
 [Excl. VAT]


Further Information
ISP Header - 10-way IDC - Atmel SPI pin-out >>
