ARM Cortex - 10-way ISP ribbon cable - 150mm length (0.05" pitch connectors)

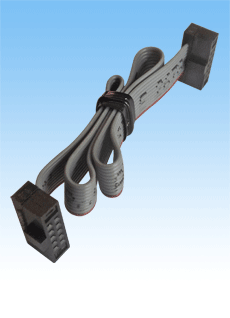

The CAB-ARM-10W-150 is an In-System Programming (ISP) ribbon cable designed to connect from any ISP programmer  which features a 10-way 0.05" pitch connector to a 10-way 0.05" pitch connector on a suitable ARM microcontroller Target System. The cable features 150 mm of flat ribbon cable with a 10-way 0.05" (1.27mm) pitch female connector on each end.

This cable can be used with any ARM device programmer which features the standard ARM Cortex 10-way 0.05" pitch connector. It is suitable for programming any ARM device via either the JTAG or Serial Wire Debug (SWD) interface. It can also be used with any compatible ARM programmer or debugger including the Equinox range of ISP programmers.




Features



Specifications
  • Cable length (connector to connector): 150 mm
  • Cable type: 10-way flat ribbon cable (red stripe denotes pin 1)
  • Each end of the cable is terminated with a 10-way 0.05" (1.27mm) pitch female connector
  • Connectors are bump-polarised to stop the connector being plugged in the wrong way around

This cable is compatible with the following equipment

  • Any compatible ARM programmer or debugger or ARM Target System (PCB) which features the 0.05" (1.27mm) pitch 10-way connector.
  • EPSILON5-MK4(ARM) programmer - fitted with ASSY-ARM-10W connector module
  • FS2009USB(ARM) programmer - fitted with ASSY-ARM-10W connector module
  • ISPnano Series 4 programmer - fitted with IOMOD8 connector module
  • ISPnano-MUX programmer - fitted with IOMOD8 connector module

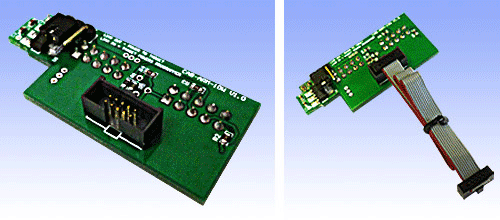

ASSY-ARM-10W connector module pictured below

ARM_10W_ASSY

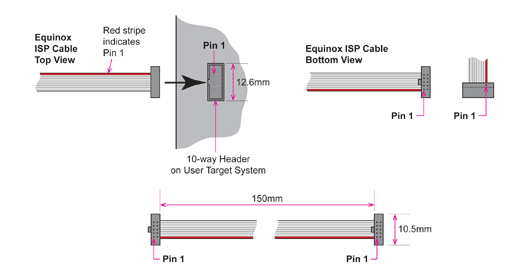

Cable layout




Ordering Information...




ARM Cortex - 10-way ISP ribbon cable - 150mm length (0.05" pitch connectors)
The CAB-ARM-10W-150 is an ISP ribbon cable designed to connect between a device programmer and an ARM Target Board. The cable features a 10-way 0.05" connector on each end. Cable length: 150mm.
Manufacturer:  Equinox Technologies
Order Code:
Equinox:  CAB-ARM-10W-150
 483-1033-ND
Quantity Price (GBP) [Excl. VAT]
1 and above 11.85

Availability:
0 in stock
7 days delivery
Product Information
Product:  ARM Cortex - 10-way ISP ribbon cable - 150mm length (0.05" pitch connectors)
Manufacturer:  Equinox Technologies
Order Code:
Equinox:  CAB-ARM-10W-150
 483-1033-ND
Availability:  0 in stock
7 days delivery
Price:   11.85 (GBP)
 [Excl. VAT]
