Sollae CSE-M53/CB - Embedded Serial to Ethernet Converter - Carrier Board |
|
|
|
|
|
| |

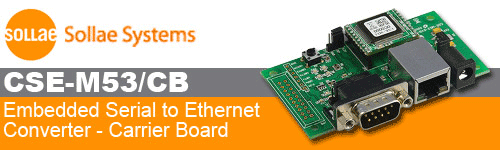

| The CSE-M53/CB is a carrier board for the CSW-M53 Embedded Serial to Ethernet Converter Module. |
| |
|
|
 |
Main features |
|
- Serial to Ethernet Converter module
-
Very compact module type : 20mm x 24mm
-
Ethernet 10Base-T or 100Base-TX (Auto-Sensing)
-
High speed UART x 1 (3.3V TTL, up to 921.6Kbps) available on RS232/RS422/RS485 extension
-
(In case of RS485 or Using Xon/Xoff, the maximum data rate of the UART is limited to 230.4Kbps)
-
Access Restriction : IP and MAC address filtering, Password
-
Flexible configuration and network communication by 'AT Commands' (patent)
-
Variety of monitoring status (debugging mode, ezManager, Telnet)
-
4 x Communication modes (TCP server, TCP client, AT Command and UDP)
-
DHCP and PPPoE
-
DNS (easy access using domain name)
-
DDNS (dynamic IP address management by domain name)
-
IP Change Notification for dynamic IP address management (TCP, UDP and DDNS)
-
Telnet COM Port Control Option (RFC 2217)
-
Firmware upgrade through Network
-
Powerful management software for Windows OS (ezManager)
-
Virtual COM Port Redirector for Windows OS (ezVSP)
-
Environmentally-friendly RoHS compliant
|
| |
For further information about related products, please see the Overview Product.
|  |
|
