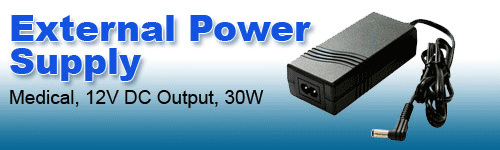

External Power Supply PSU, MEDICAL,12V DC Output, 30W




This is an external Mains Power Supply Adaptor: 12V DC Output with 2.5mm Barrel Plug. INPUT: 100-240VAC, 50-60Hz, Medical grade, Certifications: UL, CE, PSE.



Features



Features
  • PSU, EXTERNAL, MEDICAL, 30W, 12V
  • Power Supply Output Type: Fixed
  • Input Voltage VAC: 80V to 264V
  • No. of Outputs: 1
  • Output Voltage Nom.: 12V
  • Output Current Max: 2.5A
  • Output Power Max: 30W
  • Approvals / Standards: IEC 60601, EN 60601, EN 55011, UL 60601
  • Output Connector: 2.5mm x 5.5mm x 12mm
  • Applications: Medical
  • Efficiency: 82%
  • External Depth: 110mm
  • External Length / Height: 30mm
  • External Width: 50mm
  • Height: 30mm
  • Input Current: 0.6mA
  • Isolation Voltage: 4000V
  • Lead Length: 1.22m
  • Length: 110mm
  • Mounting Type: Wall
  • Operating Temperature Max: 60C
  • Operating Temperature Min: 0C
  • Output Current: 2.5A
  • Output Voltage: 12V
  • Output Voltage Max: 15.8V
  • Output Voltage Min: 14.3V
  • Power Rating: 30W
  • Power Supply Type: Switch Mode
  • Supply Voltage: 264V
  • Supply Voltage Max: 264V
  • Supply Voltage Min: 90V
  • Weight: 210g
  • Width: 50mm




Ordering Information...




External Power Supply PSU, MEDICAL,12V DC Output, 30W
This is an external Mains Power Supply Adaptor: 12V DC Output with 2.5mm Barrel Plug. INPUT: 100-240VAC, 50-60Hz, Medical grade, Certifications: UL, CE, PSE.
Manufacturer:  Equinox Technologies
Order Code:  PSU-12V30W-M1
Quantity Price (GBP) [Excl. VAT]
1 - 4
37.00
5 and above
35.15

Availability:
0 in stock
7 days delivery


Product Information
Product:  External Power Supply PSU, MEDICAL,12V DC Output, 30W
Manufacturer:  Equinox Technologies
Order Code:  PSU-12V30W-M1
Availability:  0 in stock
7 days delivery
Price:   37.00 (GBP)
 [Excl. VAT]
