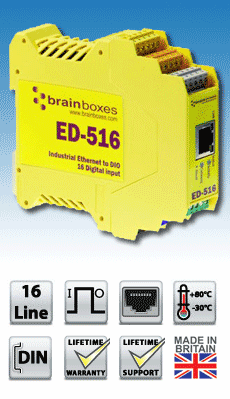

Main Features |
|
- Ethernet to Digital IO converter module
-
16 x non-isolated Digital Input channels
-
1 x gateway half-duplex RS485 Serial Port
-
Monitor any input from TTL to high voltage high current industrial devices
-
Wide Range Redundant Dual Power Input:
-
-30°C to +80°C Temperature range
-
Integrated DIN rail mount
|
|

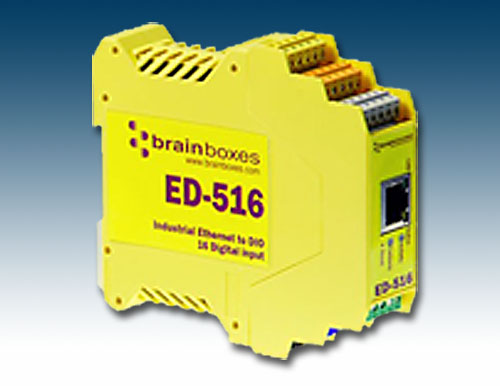

Product photo |
|
|
|
|
Digital Inputs |
|
|
|
- Input Channels: 8 non-isolated input channels
-
NPN/PNP: One jumper configures all inputs as either pull up for NPN, active low,
-
type sensors or pull down for PNP, active high, type sensors
-
Logic Level 0: 0V to +1V
-
Logic Level 1: +3.5V to +30V
-
Latched Inputs: Triggered by user programmable positive or negative edges, stays true until acknowledged
-
Counter Inputs: User programmable- counts positive or negative transitions 0-65335
|
|
Ethernet to DIO Device Server |
|
- The Ethernet to Digital IO (DIO) device is implemented using a Windows COM port driver
-
This COM port driver is completely compatible with all popular PC packages such as LabView, MATLAB and Agilent VEE and
-
supports a range of popular APIs.
-
Continue to get value from your existing development and process control system.
|
|
Gateway RS485 Serial Port |
|
|
|
- 1 x Half-duplex RS485 port
-
Supports connection and control of any RS485 compatible equipment
-
Supports communications with industry standard NuDAM, eDAM and ADAM modules using ASCII protocols.
-
Tx FIFO Size: 2048, Rx FIFO Size: 2048
-
Operating Distance: RS422/485 Standard (4000 ft : 1200 metres)
|
|
Brainboxes' Easy Wire Feature |
|
|
|
- Removable high-quality screw terminal blocks make cable installation easier
-
Colour-coded terminal blocks and ports prevents incorrect connections
-
Numbered Pins simplifies wiring and helps to remove confusion
|
|
Wide Range Redundant Dual Power Input |
|
|
|
- Power supply input range: +5VDC to +30VDC
-
Accommodates variation in the +24VDC factory floor and allows alternative power sources.
-
A second power supply can be fitted as a back-up to prevent down time should one power source fail.
-
Can use 5 Volt power from any computer USB port via optional accessory cable PW-650 - Useful for configuring the device from a laptop in the field.
|
|
Grounding |
|
|
|
- Correctly wired grounds help cut down on electromagnetic interference
-
5-pin terminals allow a ground on the 5th pin of each block Functional earth connection to the DIN rail
|
|
Multi-Platform Software designed for the factory floor |
|
|
|
- Designed for Industry Standard Packages
-
Configure, monitor and control using LabView, MATLAB or Agilent VEE.
-
Brainboxes Ethernet IO devices can be configured, monitored and controlled using a Windows COM port driver.
-
The COM port is completely compatible with all popular PC packages such as LabView, MATLAB and Agilent VEE.
-
Continue to get value from your existing development and process control system.
|
|
Extended Temperature Range |
|
|
|
- Temperature range: -30°C to +80°C
-
This Extended Temperature operating range copes with changing temperatures for harsh environments found in industrial environments
-
It is possible to monitor the CPU temperature via the web interface or programmatically using ASCII commands
|
|
Watchdog feature |
|
|
|
- Allows independent known good states to be set for power up and comms link watchdog and hardware watchdog
-
Programmable time range allows full control.
|
|
Slim Shape |
|
|
|
- Small foot print for when DIN rail space is a premium
-
Only 22.6mm wide
|
|
Product support |
|
- Warranty Lifetime - online registration required
-
Support Lifetime: Web, Email and Phone Support from fully qualified, friendly staff who work in and alongside the Product Development Team
|
|
Approvals |
|
- Industry Approvals: CCC-Mark, C-Tick, Microsoft Certified Gold Partner, WEEE, RoHS, METL
-
Microsoft Approvals: AEO (C-TPAT)
-
Microsoft Signed Drivers: Windows Vista / 7 / 8 / Windows Server 2008
|
|
Typical applications |
|
- Interfacing any industrial control process to Ethernet
-
Interfacing legacy control equipment to Ethernet
|
| |
