SW-504 - Industrial Ethernet - 4 Port Switch (DIN Rail version)




The Brainboxes SW-504 is a 4-port unmanaged Ethernet Switch designed for industrial applications such as factory floor control and automation. It can be DIN rail mounted and features dual power input circuitry.

Galvanically Isolated Ports. Industrial temperature range of -30C to +80C (-22F to 176F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.



Features



Main Features
Product photo
Brainboxes' Easy Wire Feature
Wide Range Redundant Dual Power Input
Extended Temperature Range
Slim Shape
Product support
Approvals
Typical applications

Main Features
  • 4 Port unmanaged Ethernet Switch
  • Designed for industrial environments
  • Din Rail Mountable
  • Redundant dual power inputs: +5V to +30V DC
  • Industrial temperature range -30C to +80C
  • Slim Footprint Case
  • Lifetime Warranty and Support

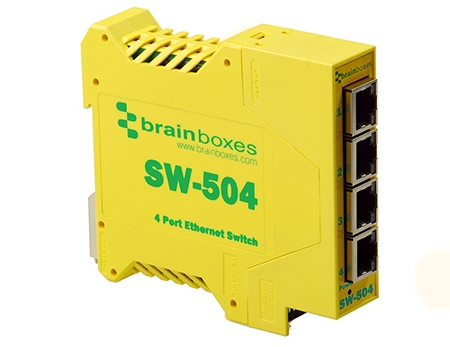

Product photo

Brainboxes' Easy Wire Feature

  • Removable high-quality screw terminal blocks make cable installation easier
  • Colour-coded terminal blocks and ports prevents incorrect connections
  • Numbered Pins simplifies wiring and helps to remove confusion

Wide Range Redundant Dual Power Input

  • Power supply input range: +5VDC to +30VDC
  • Accommodates variation in the +24VDC factory floor and allows alternative power sources.
  • A second power supply can be fitted as a back-up to prevent down time should one power source fail.
  • Can use 5 Volt power from any computer USB port via optional accessory cable PW-650 - Useful for configuring the device from a laptop in the field.

Extended Temperature Range

  • Temperature range: -30C to +80C
  • This Extended Temperature operating range copes with changing temperatures for harsh environments found in industrial environments
  • It is possible to monitor the CPU temperature via the web interface or programmatically using ASCII commands

Slim Shape
  • Small foot print for when DIN rail space is a premium
  • Only 22.6mm wide

Product support
  • Warranty Lifetime - online registration required
  • Support Lifetime: Web, Email and Phone Support from fully qualified, friendly staff who work in and alongside the Product Development Team

Approvals
  • Industry Approvals:  CCC-Mark, C-Tick, Microsoft Certified Gold Partner, WEEE, RoHS, METL

Typical applications
  • Networking Ethernet devices / peripherals in an industrial environment
  • Ideal for factory floor, in vehicle and marine applications




Ordering Information...




SW-504 - Industrial Ethernet - 4 Port Switch (DIN Rail version)
The Brainboxes SW-504 is a 4-port unmanaged Ethernet Switch designed for industrial applications such as factory floor control and automation. It can be DIN rail mounted and features dual power input circuitry.
Manufacturer:  Brainboxes
Order Code:  BRAIN-SW-504
Quantity Price (GBP) [Excl. VAT]
1 and above 47.50

Availability:
30 in stock




Product Information
Product:  SW-504 - Industrial Ethernet - 4 Port Switch (DIN Rail version)
Manufacturer:  Brainboxes
Order Code:  BRAIN-SW-504
Availability:  30 in stock
Price:   47.50 (GBP)
 [Excl. VAT]
