ED-538 - Ethernet to DIO Module - 4 Digital Relays and 8 Digital Inputs





The Brainboxes ED-538 is an Ethernet to Digital IO (DIO) Module featuring 4 x Digital Relays and 8 x Digital Input channels. It is specifically designed for industrial environments such as factory floor control and automation.

Click to return




Features

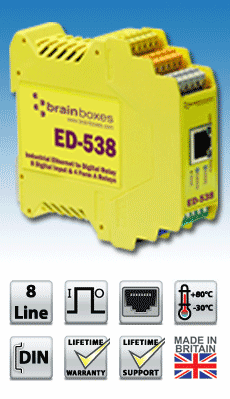

Main Features
Product photo
Digital Inputs
Ethernet to DIO Device Server
Gateway RS485 Serial Port
Brainboxes' Easy Wire Feature
Wide Range Redundant Dual Power Input
Grounding
Multi-Platform Software designed for the factory floor
Extended Temperature Range
Watchdog feature
Slim Shape
Product support
Approvals
Typical applications

Main Features
  • Ethernet to Digital IO converter module
  • 16 x non-isolated Digital Input channels
  • 1 x gateway half-duplex RS485 Serial Port
  • Monitor any input from TTL to high voltage high current industrial devices
  • Wide Range Redundant Dual Power Input:
  • -30C to +80C Temperature range
  • Integrated DIN rail mount

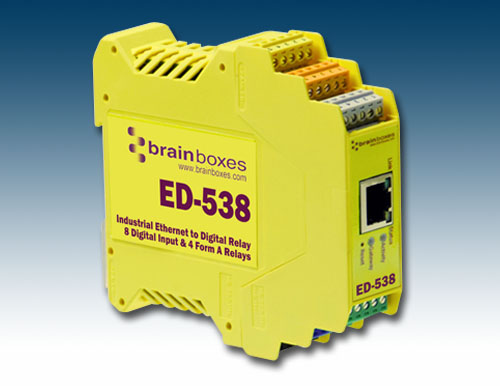

Product photo

Digital Inputs

  • Input Channels: 8 non-isolated input channels
  • NPN/PNP: One jumper configures all inputs as either pull up for NPN, active low,
  • type sensors or pull down for PNP, active high, type sensors
  • Logic Level 0: 0V to +1V
  • Logic Level 1: +3.5V to +30V
  • Latched Inputs: Triggered by user programmable positive or negative edges, stays true until acknowledged
  • Counter Inputs: User programmable- counts positive or negative transitions 0-65335

Ethernet to DIO Device Server
  • The Ethernet to Digital IO (DIO) device is implemented using a Windows COM port driver
  • This COM port driver is completely compatible with all popular PC packages such as LabView, MATLAB and Agilent VEE and
  • supports a range of popular APIs.
  • Continue to get value from your existing development and process control system.

Gateway RS485 Serial Port

  • 1 x Half-duplex RS485 port
  • Supports connection and control of any RS485 compatible equipment
  • Supports communications with industry standard NuDAM, eDAM and ADAM modules using ASCII protocols.
  • Tx FIFO Size: 2048, Rx FIFO Size: 2048
  • Operating Distance: RS422/485 Standard (4000 ft : 1200 metres)

Brainboxes' Easy Wire Feature

  • Removable high-quality screw terminal blocks make cable installation easier
  • Colour-coded terminal blocks and ports prevents incorrect connections
  • Numbered Pins simplifies wiring and helps to remove confusion

Wide Range Redundant Dual Power Input

  • Power supply input range: +5VDC to +30VDC
  • Accommodates variation in the +24VDC factory floor and allows alternative power sources.
  • A second power supply can be fitted as a back-up to prevent down time should one power source fail.
  • Can use 5 Volt power from any computer USB port via optional accessory cable PW-650 - Useful for configuring the device from a laptop in the field.

Grounding

  • Correctly wired grounds help cut down on electromagnetic interference
  • 5-pin terminals allow a ground on the 5th pin of each block Functional earth connection to the DIN rail

Multi-Platform Software designed for the factory floor

  • Designed for Industry Standard Packages
  • Configure, monitor and control using LabView, MATLAB or Agilent VEE.
  • Brainboxes Ethernet IO devices can be configured, monitored and controlled using a Windows COM port driver.
  • The COM port is completely compatible with all popular PC packages such as LabView, MATLAB and Agilent VEE.
  • Continue to get value from your existing development and process control system.

Extended Temperature Range

  • Temperature range: -30C to +80C
  • This Extended Temperature operating range copes with changing temperatures for harsh environments found in industrial environments
  • It is possible to monitor the CPU temperature via the web interface or programmatically using ASCII commands

Watchdog feature

  • Allows independent known good states to be set for power up and comms link watchdog and hardware watchdog
  • Programmable time range allows full control.

Slim Shape

  • Small foot print for when DIN rail space is a premium
  • Only 22.6mm wide

Product support
  • Warranty Lifetime - online registration required
  • Support Lifetime: Web, Email and Phone Support from fully qualified, friendly staff who work in and alongside the Product Development Team

Approvals
  • Industry Approvals:  CCC-Mark, C-Tick, Microsoft Certified Gold Partner, WEEE, RoHS, METL
  • Microsoft Approvals: AEO (C-TPAT)
  • Microsoft Signed Drivers: Windows Vista / 7 / 8 / Windows Server 2008

Typical applications
  • Interfacing any industrial control process to Ethernet
  • Interfacing legacy control equipment to Ethernet




Ordering Information...




ED-538 - Ethernet to DIO Module - 4 Digital Relays and 8 Digital Inputs
The Brainboxes ED-538 is an Ethernet to Digital IO (DIO) Module featuring 4 x Digital Relays and 8 x Digital Input channels. It is specifically designed for industrial environments such as factory floor control and automation.
Manufacturer:  Brainboxes
Order Code:  BRAIN-ED-538
Quantity Price (GBP) [Excl. VAT]
1 and above 199.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  ED-538 - Ethernet to DIO Module - 4 Digital Relays and 8 Digital Inputs
Manufacturer:  Brainboxes
Order Code:  BRAIN-ED-538
Availability:  0 in stock
7 days delivery
Price:   199.00 (GBP)
