Ethernet to Digital IO (DIO) Module - 8 x Digital IO (DIO) Lines |
|
|
|
|
|
| |

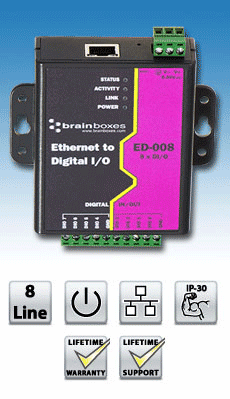

The ED-008 is an Ethernet to Digital (DIO) module featuring 8 x digital input/output (DIO) channels. It has been specially designed to support switching of equipment and / or monitoring of input signals over an Ethernet network. It is suitable for commercial or light industrial use.
|
| |
|
|
 |
Main features |
|
- 8 x Digital Inputs / Output (DIO) channels
-
Outputs are capable of driving high current and high voltage loads - ideal for inductive, capacitive and resistive loads
-
Designed for Factory floor process control and automation
-
Offers robust and intelligent 'control side' device
-
The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.
-
User friendly software interface, Legacy compatible
-
0°C to +60°C Temperature range
-
Wall mountable
|
|
IO Channels |
|
- Description: 8 Digital Inputs/Outputs
-
Digital Inputs: 8
-
Logic Level 0: 0V to +1V
-
Logic Level 1: +3.5V to +30V
-
Latched Inputs: Triggered by user programmable positive or negative edges, stays true until acknowledged
-
Counter Inputs: User progammable- counts positive or negative transitions up to 100Hz
-
Watchdog: Active high/low, Pulsed high/low
-
Digital Outputs: 8
-
Digital Output Type: Open drain transistor, protected MosFET. Short circuit protection up to 36V. Over temperature shutdown -175°C typical 150°C min
-
Maximum Output Load Voltage: 30 VDC, 250 VAC
-
Maximum Output Current Sink: 5.0A per channel
|
|
Typical applications |
|
- Designed for Factory floor process control and automation
-
Suitable for control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids.
-
Capable of monitoring any input eg. switches, on/off sensors etc in a factory or production environment.
|
| |
|  |
|
