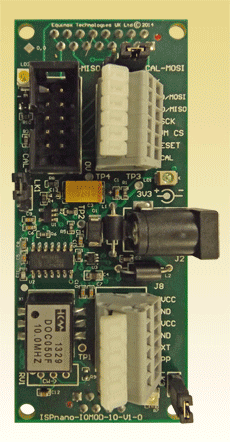

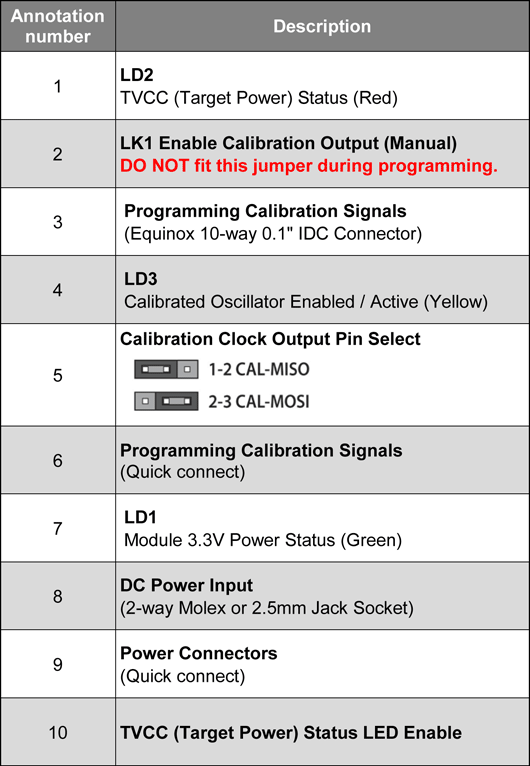

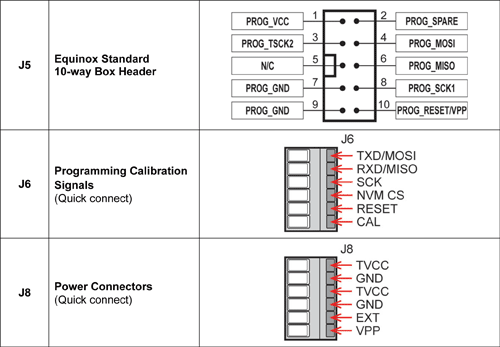

The connectors on the IOMOD10F module are detailed in the table below.

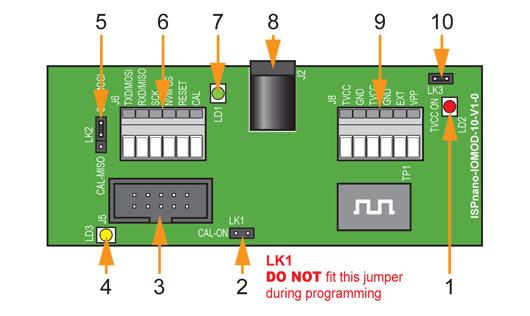

The ‘IOMOD10’ module features 2 x 'Configuration jumpers' which are used to configure the module for the programming application.

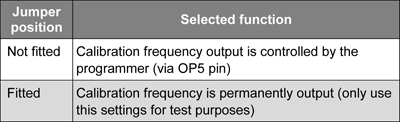

Configuration Jumper LK1 - Enable Calibration Output

The jumper link LK1 is used to manually force the 'Calibration frequency' to be output from the module. This bypasses the programmer control and can be used to manually test the output frequency of the module.

Please refer to the table below which shows the settings for this jumper link.

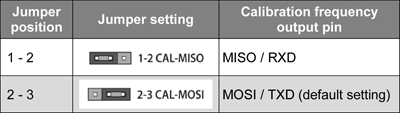

Configuration Jumper LK2 - Calibration Clock Output Pin Select

The LK2 jumper link is used to select which pin the 'Calibration frequency' will be output on.

Please refer to the table below which shows the settings for this jumper link.

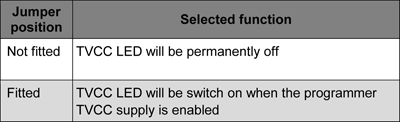

Configuration Jumper LK3 - TVCC ON - Status LED

The jumper link LK3 enables the 'TVCC Status LED' . When the programmer switches on the target power supply (TVCC), the 'TVCC ON' LED will switch on.

Please refer to the table below which shows the settings for this jumper link.

The illustration below shows how to connect the IOMOD10 module to a Target Board (DUT) via the SPI interface.

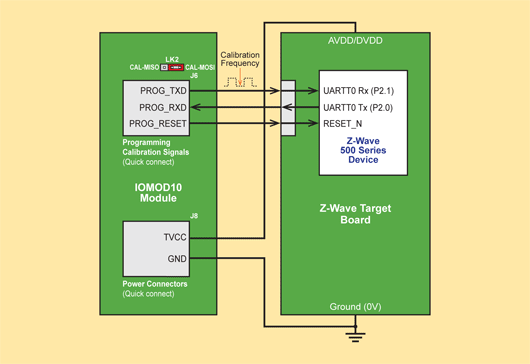

The illustration below shows how to connect the IOMOD10 module to a Target Board (DUT) via the UART interface.

The IOMOD10 connector module must be powered by an external 3.0V power supply. The external supply is required because the 'OXCO - Oscillator Module' takes around 600mA at 3.0V and must have a accurate current-limited supply.

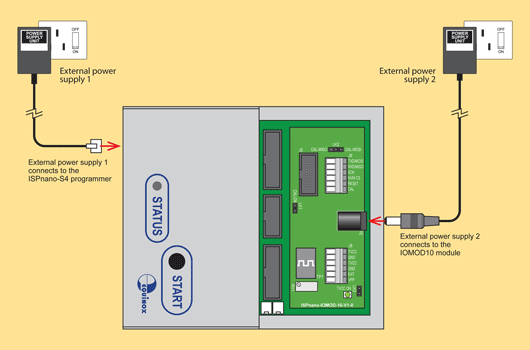

The illustration below shows how to connect an external power supply to the IOMOD10 module via a 2.1 mm centre positive jack socket.
