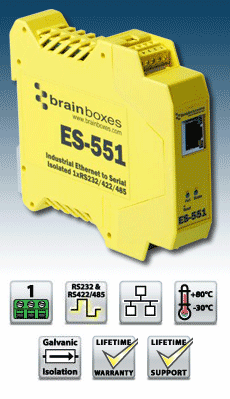

Brainboxes - ES-551 - Isolated Industrial Ethernet to Serial converter 1xRS232/422/485





Ethernet to Serial Device with 1 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex and 2 Ethernet ports. ES-551 has removable Screw Terminals Blocks for easy wiring, a slim 'end on' case and integral DIN rail mount. Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our Industrial ES range provides simple instant networked serial ports in demanding environments. Serial Port Tunnelling allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply.




Features



Product Features
  • 1 Port RS-232/422/485
  • Industrial Isolated Ethernet to Serial Device Server
  • Data rate from 110 to 921,600 baud
  • Removable, colour-coded, number terminal blocks
  • -30C to +80C Temperature range
  • Robust, Slim Design, Integrated DIN rail mount




Ordering Information...




Brainboxes - ES-551 - Isolated Industrial Ethernet to Serial converter 1xRS232/422/485
Ethernet to Serial Device with 1 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex and 2 Ethernet ports.
Manufacturer:  Brainboxes
Order Code:  BRAIN-ES-551
Quantity Price (GBP) [Excl. VAT]
1 and above
275.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  Brainboxes - ES-551 - Isolated Industrial Ethernet to Serial converter 1xRS232/422/485
Manufacturer:  Brainboxes
Order Code:  BRAIN-ES-551
Availability:  0 in stock
7 days delivery
Price:   275.00 (GBP)
 [Excl. VAT]


Downloads
Download View Downloads for this Product
