Sigma Z-Wave 500 series - UART Interface Connection - Overview





The ‘IOMOD10’ module has been specially designed to support 'XTAL calibration' of Sigma Designs Z-Wave 500 series ICs and modules. The module generates a very accurate 'Calibration frequency' which can be switched to the target Z-Wave device under programmer control.

Application Notes Product Leaflets Downloads Software Upgrades FAQs

Device Libraries Overview Page



Features



Connecting a Sigma z-Wave 500 series via the UART interace

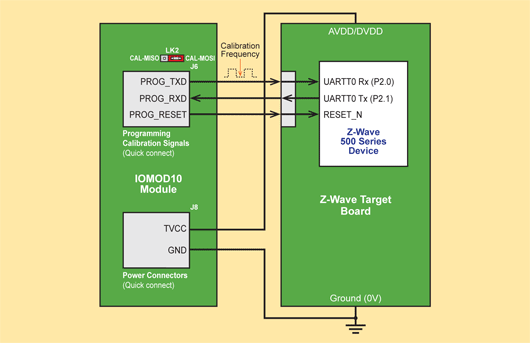

The illustration below shows how to connect the IOMOD10 module to a Target Board (DUT) via the UART interface

UART Interface

The 10-way UART Header pinout

UART Header




Ordering Information...
