Silicon Labs Z-Wave 500 Series - Overview

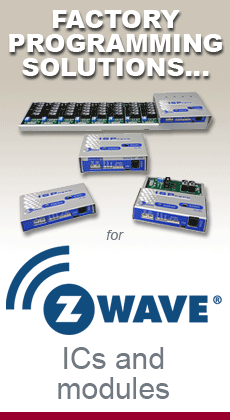

The Equinox ‘ISPnano’ range of programmers offers a scalable production In-System Programming (ISP) solution for Sigma Designs Z-Wave® 500 Series SOC devices and modules.

The programmers are designed for high-throughput production use. The ‘ISPnano’ range includes single channel, multiplexed and gang (concurrent) programming systems catering for single Target Boards or multiple Target Boards on a PCB panel.

Device Library Support Application Note Product Leaflet Download FAQs




Features



Production Programming Systems for Z-Wave 500 Series devices and modules

Equinox offer a range of production programming systems for Z-Wave 500 series SOC devices and modules.....

DEV2-S2  RT2-S2
DEV1  RT1
SM1

Main features
  • High-speed programming of all Sigma Designs 'Z-Wave Next Gen System-on-Chip (SOC's) and modules' (based on new 500 series devices)
  • Supports programming of on-chip FLASH, NVR area and Lock Bits
  • Supports both SPI and UART programming interfaces
  • Very accurate Programmer controlled Target Power Supply (1.8 - 5.0V)
  • Programmer controlled Target 'Discharge Circuit' to discharge the target system before disconnection.
  • Comprehensive ESD and over-voltage protection on all programmer I/O pins

Programmer support

The programmers shown in the illustration below can be used for programming Z-Wave 500 Series devices.....

Overview Title

ISPnanoS3ISPnano-GANGISPnanoS3-ATEISPnanoS4-ATE

ISPnano-MUXISPnano-MUX4ISPnano-MUX8

Important notes:

  • The ISPnano Series 3, Series S3 ATE, Series 4 ATE and GANG programmers require a 'Device Library' per programmer channel.
  • The ISPnano-MUX programming systems only require one license per programmer.

SIGMA Z-Wave 500 Series Module comparison table

If you are not sure which SIGMA Z-wave 500 Series Module to choose click HERE or on the image below to view a module comparison table.

Comparison Table

Algorithm features
  • Supports programming of on-chip FLASH, NVR area and Lock Bits
  • Automatically takes a copy of the NVR data area before a Chip Erase operation and programs it back in at the end of the sequence
  • Supports 'Tx Calibration' of the target 500 series device (requires a programming script)

Programming interfaces supported
  • SPI
  • UART

Further Information

The following links will provide you with further information...

Calibration Overview

Click HERE or on the image above to view the Calibration overview page.

Frequently Asked Questions

Frequently Asked Questions

Click HERE or on the image above to view the Frequently Asked Questions page

SPI Interface Connection

SPI Interface

Click HERE or on the image above to view the SPI Interface Connection overview page

UART Interface Connection

UART Interface

Click HERE or on the image above to view the UART Interface Connection overview page

Sigma 500 Series Device Support Library

Device Support Library

Software Support Tools - Overview

The following 'Software Tools' are required for configuring our programmers to program Z-Wave 500 devices.....

  • EDS - Equinox Development Suite
  • Project Builder - Creating / maintaining 'production standalone firmware projects'
  • Project Manager - Maintain all 'production standalone firmware projects'
  • ISP-PRO - production programming utility~

EDS Development ModeProject BuilderProject ManagerISPPRO

Please see the 'Z-Wave 500 Series - Software Tools' page for a detailed explanation of how these tools are used to program Z-Wave devices.




Device Support (by family)



This product supports devices from the families listed below:

Sigma Designs:
  • Z-Wave Next Gen modules (500 series)
  • Z-Wave Next Gen SoCs (500 series)



Device Support (by manufacturer / programming algorithm)




Sigma Designs

SPI - Serial Peripheral Interface (3-wire):
Z-Wave Next Gen modules (500 series):
ZM5101, ZM5202, ZM5304
Z-Wave Next Gen SoCs (500 series):
SD3502, SD3503


Product Versions

ISPnano Series 4 ATE - Production ISP Run-Time System for Z-Wave 500 Series
This Run-Time System includes and ISPnano Series 4 ATE Programming Kit, Sigma Z-Wave ZW 500 Series Device Library and Remote Application Control Software Run-Time license (required after the1st programming system purchased). It includes IOMOD7 connector module as standard.
Order Code:  ISPnano-Zwave500-RT1
Quantity Price (GBP) [Excl. VAT]
1 - 4
1,078.95
5 - 9
1,025.00
10 - 24
971.06
25 and above
917.11

Availability:
20 in stock
ISPnano-Zwave500-DEV1 - Production programming System for Z-Wave 500 Series
This Development System includes and ISPnano Series 4 ATE Programming Kit, Sigma Z-Wave ZW 500 Series Device Library and Remote Application Control Software Development Kit (required for the1st programming system purchased). It includes IOMOD7 connector module as standard.
Order Code:  ISPnano-Zwave500-DEV1
Quantity Price (GBP) [Excl. VAT]
1 - 4
2,829.96
5 - 9
2,688.46
10 - 24
2,546.96
25 and above
2,405.47

Availability:
5 in stock
Standalone Mode - Production ISP Programming System for Z-Wave devices
This System includes and ISPnano Series 4 ATE Programming Kit and Sigma Z-Wave ZW 500 Series Device Library.
Order Code:  ISPnano-Zwave500-SM1
Quantity Price (GBP) [Excl. VAT]
1 - 4
880.00
5 - 9
836.00
10 - 24
792.00
25 and above
748.00

Availability:
10 in stock
Zwave500-DEV2-S2 - Production programming System for Z-Wave 500 Series
This Development System includes and ISPnano Series 4 ATE Programming Kit, Sigma Z-Wave ZW 500 Series Device Library and Remote Application Control Software Development Kit (required for the1st programming system purchased). It includes IOMOD7 connector module as standard.
Order Code:  Zwave500-DEV2-S2
Quantity Price (GBP) [Excl. VAT]
1 - 4
3,020.94
5 - 9
2,869.89
10 - 24
2,718.85
25 and above
2,567.80

Availability:
5 in stock


Device Support
Device Support List
