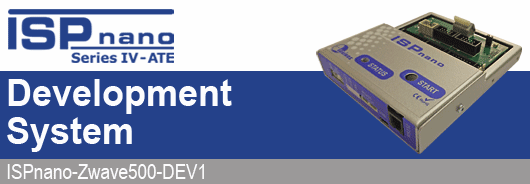

ISPnano-Zwave500-DEV1 - Production programming System for Z-Wave 500 Series





This Development System includes and ISPnano Series 4 ATE Programming Kit, Sigma Z-Wave ZW 500 Series Device Library and Remote Application Control Software Development Kit (required for the1st programming system purchased). It includes IOMOD7 connector module as standard.

Device Support Downloads Device Library Upgrades NEWS Return to Overview




Features



Hardware components

The following hardware components are included with this system....

ISPnano Series4-ATE IOMOD4 IOMOD7

Device Support Libraries

The following Device Support libraries are included with this system....

100 200 300 Series 500 Series Serial SPI Memories

Software components


Click on the image of product that you are interested in to get further information.

EQTools Components EQTools Scrpit Builder ISPPRO Runtime Licence Programming Scripts

Included Functionality Features

Database Barcode Scanning Barcode Printing Unique Data

Z-Wave - NVR area support

NVR Check  NVR Read  NVR Merge  NVR Log

Standalone Mode Control Methods


Listed below are the Control Methods included in this kit.

Standalone Mode  LidSwitch

Target Load  ASCII Text

4-Wire TTL

Z-Wave - Calibration support

TX Cal Check  TX Cal and Re-Cal  XTAL Cal Check  XTAL Cal and Re-Cal

Calibration support

TX Calibration

Click on the image to get further information

Technical Support

Tech Support GOLD

Click on the Technical Support image to find out further information.

Product Upgrades


Click HERE
to view upgrades that are available to purchase for this product




Device Support (by family)



This product supports devices from the families listed below:

Sigma Designs:
  • Z-Wave Next Gen modules (500 series)
  • Z-Wave Next Gen SoCs (500 series)
  • Z-Wave Single Chips - 100 Series
  • Z-Wave Single Chips - 200 Series
  • Z-Wave Single Chips - 300 Series



Device Support (by manufacturer / programming algorithm)




Sigma Designs

LVISP - Low Voltage SPI - Serial Programming Algorithm:
Z-Wave Single Chips - 100 Series:
ZW0102
Z-Wave Single Chips - 200 Series:
ZW0201
Z-Wave Single Chips - 300 Series:
ZW0301

SPI - Serial Peripheral Interface (3-wire):
Z-Wave Next Gen modules (500 series):
ZM5101, ZM5202, ZM5304
Z-Wave Next Gen SoCs (500 series):
SD3502, SD3503



Ordering Information...




ISPnano-Zwave500-DEV1 - Production programming System for Z-Wave 500 Series
This Development System includes and ISPnano Series 4 ATE Programming Kit, Sigma Z-Wave ZW 500 Series Device Library and Remote Application Control Software Development Kit (required for the1st programming system purchased). It includes IOMOD7 connector module as standard.
Manufacturer:  Equinox Technologies
Order Code:  ISPnano-Zwave500-DEV1
Quantity Price (GBP) [Excl. VAT]
1 - 4
2,829.96
5 - 9
2,688.46
10 - 24
2,546.96
25 and above
2,405.47

Availability:
5 in stock

For further information about related products, please see the Overview Product.



Product Information
Product:  ISPnano-Zwave500-DEV1 - Production programming System for Z-Wave 500 Series
Manufacturer:  Equinox Technologies
Order Code:  ISPnano-Zwave500-DEV1
Availability:  5 in stock
Price:   2,829.96 (GBP)
 [Excl. VAT]


Overview Product
Silicon Labs Z-Wave 500 Series - Overview >>


Device Support
Device Support List


Downloads
Download View Downloads for this Product
