EQTools V4 - Integrated Development Environment (IDE) for Equinox Programmers

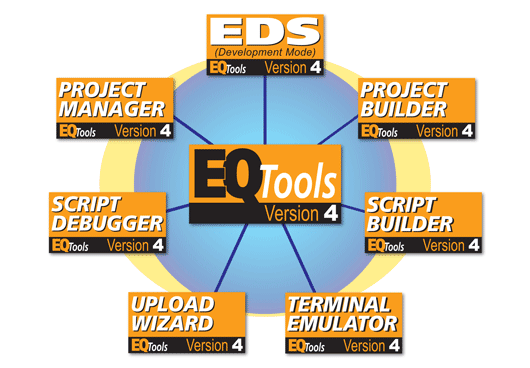

EQTools V4 is a powerful Integrated Development Environment (IDE) which supports the latest Equinox device programmers as detailed below. The IDE coordinates the building and uploading of 'Programming Projects' to a programmer. A powerful 'Development Suite' called 'EDS' allows Programming Projects to be debugged before they are uploaded to the programmer. The IDE also features 'Script Builder' component which supports compilation of 'Programming Scripts' which can be executed within the Equinox 'ISP-PRO' production software. EQTools software components: - Project Builder - Project Manager - Project Upload / Download Wizard - Equinox Development Suite (EDS) - Script Builder/Wizard - Script Wizard EQTools supports the following Equinox programmers: - EPSILON5 MKII, FS200A, PPM3 *** The PRO101 / 104 / 108 are not supported by this software ***

Software DownloadsSoftware Upgrades




Features



Main features

EDS (Development Mode)

EDS Development Mode

Project Builder

Project Builder

Project Manager

Project Manager

Upload Wizard

Upload Wizard

Script Builder

Script Builder

Script Debugger

Script Debugger

Terminal Emulator

Terminal Emulator




Device Support (by family)



This product supports devices from the families listed below:

Atmel Corporation:
  • AT89(L)S - 8051 FLASH Microcontroller Family
  • AT90CAN - AVR with on-chip CAN : AVR microcontroller with on-chip CAN
  • AT90S AVR  - FLASH Microcontroller Family
  • ATmega AVR - FLASH Microcontroller Family
  • ATtiny AVR - FLASH Microcontroller Family
  • T89C51 - 8051 ISP FLASH Microcontroller Family
NXP (Philips):
  • P89C51Rx2 - 8051 FLASH Microcontroller Family
  • P89C66x - 8051 FLASH Microcontroller Family
Sigma Designs:
  • Z-Wave Single Chips - 100 Series



Please note:
Not all devices may be supported within a family.
Please see the Detailed Device Support List for a list of all devices which the product supports.




Device Support
Device Support List
