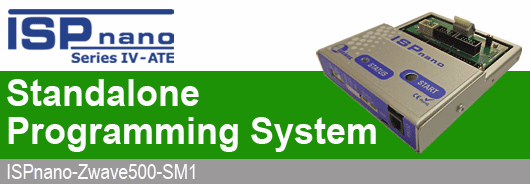

Standalone Mode - Production ISP Programming System for Z-Wave devices





This system is a complete 'Standalone Mode' programming system for programming Z-Wave 100 / 200 / 300 / 500 SOCs (ICs) and modules in a production environment. The system includes an 'ISPnano Series 4 ATE' programming module which is capable of programming a Z-Wave device. It also includes a Sigma Z-Wave ZW 500 Series Device Library (only standalone mode programming is supported).

Device Support Downloads Device Library Upgrades NEWS Return to Overview




Features



Hardware components

ISPnano Series4-ATE IOMOD4 IOMOD7

Click on the image of product that you are interested in to get further information.

Device Support Libraries

100 200 300 Series 500 Series Serial SPI Memories

Software components

Click on the image of product that you are interested in to get further information.

EQTools Components

Standalone Mode Control Methods

Listed below are the Control Methods included in this kit.

Standalone Mode  LidSwitch

Target Load  ASCII Text

4-Wire TTL

Z-Wave - NVR area support

NVR Check  NVR Merge

Z-Wave - Calibration support

TX Cal Check  XTAL Cal Check

Technical Support

Tech Support Bronze

Click on the Technical Support image to find out further information.




Device Support (by family)



This product supports devices from the families listed below:

Sigma Designs:
  • Z-Wave Next Gen modules (500 series)
  • Z-Wave Next Gen SoCs (500 series)
  • Z-Wave Single Chips - 100 Series
  • Z-Wave Single Chips - 200 Series
  • Z-Wave Single Chips - 300 Series



Device Support (by manufacturer / programming algorithm)




Sigma Designs

LVISP - Low Voltage SPI - Serial Programming Algorithm:
Z-Wave Single Chips - 100 Series:
ZW0102
Z-Wave Single Chips - 200 Series:
ZW0201
Z-Wave Single Chips - 300 Series:
ZW0301

SPI - Serial Peripheral Interface (3-wire):
Z-Wave Next Gen modules (500 series):
ZM5101, ZM5202, ZM5304
Z-Wave Next Gen SoCs (500 series):
SD3502, SD3503



Ordering Information...




Standalone Mode - Production ISP Programming System for Z-Wave devices
This System includes and ISPnano Series 4 ATE Programming Kit and Sigma Z-Wave ZW 500 Series Device Library.
Manufacturer:  Equinox Technologies
Order Code:  ISPnano-Zwave500-SM1
Quantity Price (GBP) [Excl. VAT]
1 - 4
880.00
5 - 9
836.00
10 - 24
792.00
25 and above
748.00

Availability:
10 in stock

For further information about related products, please see the Overview Product.



Product Information
Product:  Standalone Mode - Production ISP Programming System for Z-Wave devices
Manufacturer:  Equinox Technologies
Order Code:  ISPnano-Zwave500-SM1
Availability:  10 in stock
Price:   880.00 (GBP)
 [Excl. VAT]


Overview Product
Silicon Labs Z-Wave 500 Series - Overview >>


Device Support
Device Support List


Downloads
Download View Downloads for this Product


Product News View All
 15 January 2015:
Support for the Z-Wave 500 series >>


Product Upgrades View All
ASCII Text Communications (ATC) - Serial Control Protocol for Equinox Programmers >>
ConsoleEDS - OVERVIEW >>
EQTools Script Builder – License Upgrade for Equinox programmers - OVERVIEW >>
ISPnano - JTAG In-System (ISP) Upgrade for Atmel ATmega AVR Microcontrollers >>
Remote Application Control of Equinox Programmers - OVERVIEW >>
24xxx - Serial I2C EEPROM Memory - Device Library - OVERVIEW >>
