Sigma Z-Wave 500 series - SPI Interface Connection - Overview


The ‘IOMOD10’  module has been specially designed to support 'XTAL calibration' of Sigma Designs Z-Wave 500 series ICs and modules.  The module generates a very accurate 'Calibration frequency' which can be switched to the target Z-Wave device under programmer control.

Application Notes Product Leaflets Downloads Software Upgrades FAQs

Device Libraries Overview Page



Connecting a Sigma Z-Wave 500 series via the SPI interface

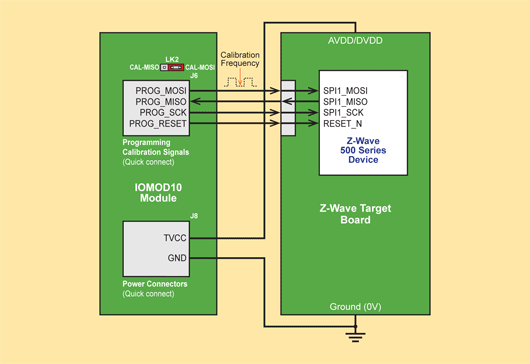

The illustration below shows how to connect the IOMOD10 module to a Target Board (DUT) via the SPI interface.

SPI Interface

The 10-way SPI Header pinout

SPI Header
