Brainboxes BL-819 - Bluetooth to RS232 Serial Adapter 1 Port Male





Compact, Award winning Brainboxes RS232 Adaptor (BL-819 - male connector or BL-830 female connector) allows any device with an RS232 port to communicate with another Bluetooth device without the need for any additional software. Ideal for Bluetooth enabling dumb RS232 devices such as dataloggers etc. with option to power from Pin 9. Based on fully tested Bluetooth silicon, allowing communications at the full Bluetooth data rates. No visible antenna.




Features



Product Features
  • 1 Port Male RS-232 Bluetooth to Serial Adapter
  • Data rate from 110 to 921,600 baud
  • Optional Power on Pin 9
  • Suitable for ANY device with a serial port
  • Range, Field: 30m, Office: 10m
  • Lifetime Support, 3 Year Warranty

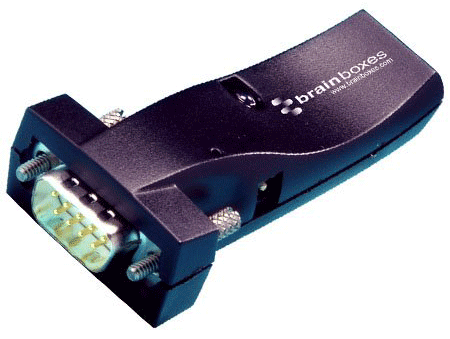

Product Picture

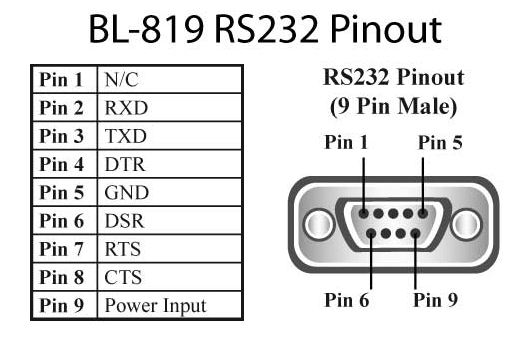

BL-819 RS-232 Pinout




Ordering Information...




Brainboxes BL-819 - Bluetooth to RS232 Serial Adapter 1 Port Male
Bluetooth to RS232 Serial Adapter 1 Port Male
Manufacturer:  Brainboxes
Order Code:  BRAIN-BL-819
Quantity Price (GBP) [Excl. VAT]
1 and above
95.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  Brainboxes BL-819 - Bluetooth to RS232 Serial Adapter 1 Port Male
Manufacturer:  Brainboxes
Order Code:  BRAIN-BL-819
Availability:  0 in stock
7 days delivery
Price:   95.00 (GBP)
 [Excl. VAT]


Downloads
Download View Downloads for this Product
