Brainboxes UC-346 - 4 Port RS422/485 PCI Serial Card





Universal PCI providing four RS422/485 serial ports with transient spike protection. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8.




Features



Product Features
  • 4 port RS422/485
  • PCI 3.0
  • 128 Byte Tx and 128 Byte Rx FIFOs
  • Up to 921,600 Baud
  • DB9 connector (9 Pin Male)
  • Drivers for all popular operating systems
  • Sample Programs, Test & Terminal software
  • Lifetime Support
  • Lifetime Warranty (registration required)

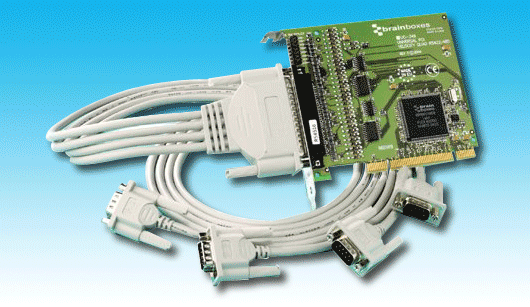

UC-346 Product Picture

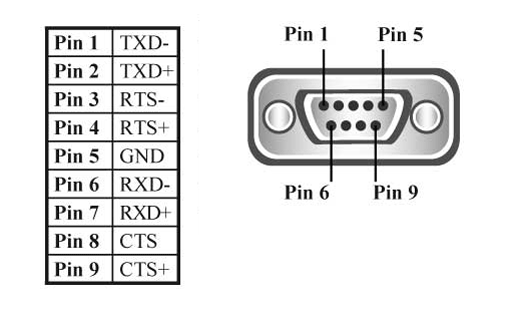

UC-346 RS422/485 Pinout (9 pin)

Operating System Compatibility
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Windows Server 2012
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows Server 2003 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Microsoft Windows 2000
  • DOS

Interface

PCI 3.0   Peripheral Component Interface




Ordering Information...




Brainboxes UC-346 - 4 Port RS422/485 PCI Serial Card
Universal PCI providing four RS422/485 serial ports with transient spike protection.
Manufacturer:  Brainboxes
Order Code:  BRAIN-UC-346
Quantity Price (GBP) [Excl. VAT]
1 and above 240.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  Brainboxes UC-346 - 4 Port RS422/485 PCI Serial Card
Manufacturer:  Brainboxes
Order Code:  BRAIN-UC-346
Availability:  0 in stock
7 days delivery
Price:   240.00 (GBP)
 [Excl. VAT]
