Brainboxes - PX-320 - 1 Port RS422/485 Low Profile PCI Express Port Card





Low profile PCI Express Card providing one RS422/485 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8.




Features



Product Features
  • 1 port RS422/485
  • PCI Express x1, x4, x8 x16 lane slots socket size
  • 128 Byte Tx and 128 Byte Rx FIFOs
  • Up to 921,600 Baud
  • DB9 connector (9 Pin Male)
  • Drivers for all popular operating systems
  • Sample Programs, Test & Terminal software
  • Lifetime Support
  • Lifetime Warranty (registration required)

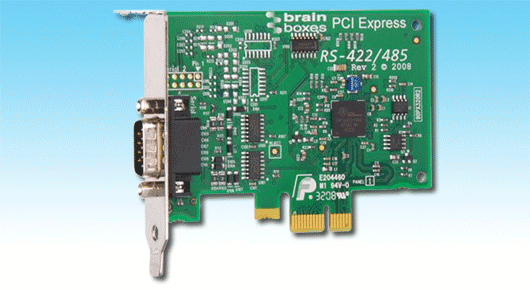

Product Picture

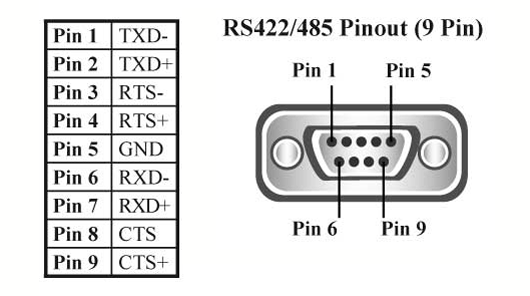

9-pin Serial Port Pinout




Ordering Information...




Brainboxes - PX-320 - 1 Port RS422/485 Low Profile PCI Express Port Card
Low profile PCI Express Card providing one RS422/485 serial port
Manufacturer:  Brainboxes
Order Code:  BRAIN-PX-320
Quantity Price (GBP) [Excl. VAT]
1 and above 120.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  Brainboxes - PX-320 - 1 Port RS422/485 Low Profile PCI Express Port Card
Manufacturer:  Brainboxes
Order Code:  BRAIN-PX-320
Availability:  0 in stock
7 days delivery
Price:   120.00 (GBP)
 [Excl. VAT]
