US-324 - 1 Port RS422/485 USB to Serial Adapter





USB to Serial adapter providing one RS422/485 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC.

Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8 with additional drivers for Raspberry Pi, Mac OS X and Linux.




Features



Product Features
Product Pictures
RS422/485 Pinout (9-pin)
Typical Product Applications
Operating System Compatibility
Interface

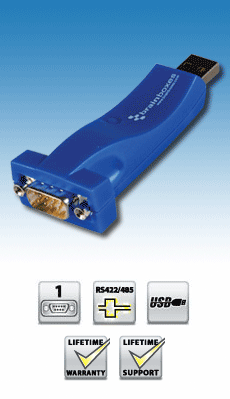

Product Features
  • 1 Port RS-422/485 USB to Serial Adapter
  • Data rate from 300 to 921,600 baud
  • Drivers for all popular operating systems including Windows 8
  • Works where many other USB to Serial devices do not
  • Includes 25cm USB Extender cable
  • Lifetime Warranty and Support

Product Pictures

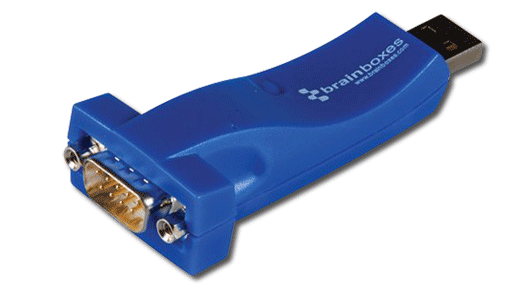

US-324 Picture

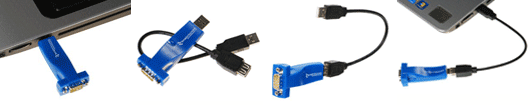

US-324 Product Pictures

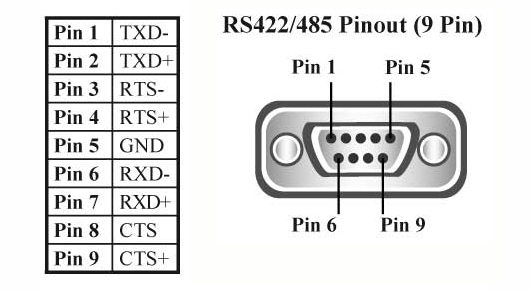

RS422/485 Pinout (9-pin)

Typical Product Applications
  • For general hardware testing over RS-422
  • Comms Checking / Commissioning HVAC control systems (Heating Ventilation and Air Conditioning)
  • Communication with amplifiers through new pc
  • Integrate with LifeSigns Monitoring Solutions
  • Development and test of marine navigation systems
  • Interface over RS422 with Lab equipment
  • Data aquisition/control of a Mass Flow controller
  • Data Communication with the Automation Systems
  • Communication with laboratory equipment
  • Readout of test equipment
  • Console connection to switches and other appliances on my Windows 8 tablet/laptop
  • Communication over RS485 with industrial components
  • Connect over serial to SAFT Battery management system
  • Configure PLCs over RS422/485
  • Connect from HP Pavillion laptop to equipment such as digital repeater systems

Operating System Compatibility
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Raspberry Pi
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Mac OS X
  • Windows Server 2003 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Linux

Interface

USB 2.0 - 480 Mb/s USB 2.0 data rates




Ordering Information...




US-324 - 1 Port RS422/485 USB to Serial Adapter
USB to Serial adapter providing one RS422/485 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC.
Manufacturer:  Brainboxes
Order Code:  BRAIN-US-324
Quantity Price (GBP) [Excl. VAT]
1 and above
49.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  US-324 - 1 Port RS422/485 USB to Serial Adapter
Manufacturer:  Brainboxes
Order Code:  BRAIN-US-324
Availability:  0 in stock
7 days delivery
Price:   49.00 (GBP)
 [Excl. VAT]
