Brainboxes PX-275 - 8 Port RS232 PCI Express Serial Card 25 Pin Connectors |
|
|
|
|
|
|
PCI Express Card providing eight RS232 serial ports connected using 25 pin cables. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8.
|
|
|
 |
Product Features |
|
- 8 Port RS-232 Serial Card
-
PCI Express (PCIe) Card
-
Includes 8 port cable DB25 connection
-
Data rate from 110 to 921,600 baud
-
Drivers for all popular operating systems including Windows 8
-
Lifetime Warranty and Support
|
 |

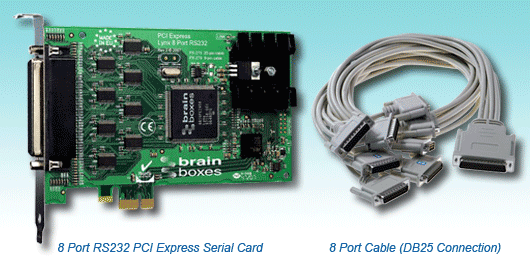

Product Pictures |
|

|
 |

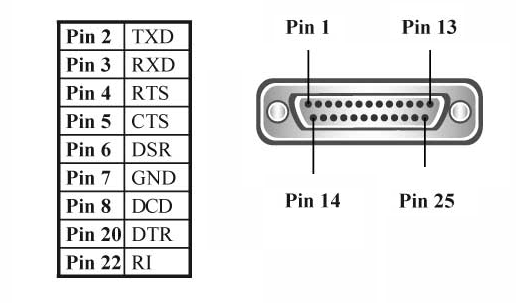

RS232 Connector Pinout (25-pin male) |
|

|
 |
Operating System Compatibility |
|
- Microsoft Windows 8 32 bit & 64 bit Editions
-
Microsoft Windows 7 32 bit & 64 bit Editions
-
Windows Server 2008 32 bit & 64 bit Editions
-
Windows Vista 32 bit & 64 bit Editions
-
Windows Server 2003 32 bit & 64 bit Editions
-
Windows XP 32 bit & 64 bit Editions
-
Microsoft Windows 2000
|
 |
Product Interface |
|
PCI Express x1, x4, x8 & x16 lane slots
PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.
|
|
|  |
|
