Brainboxes - CC-525 - 2 Port RS422/485 PCI card up to 18 MegaBaud |
|
|
|
|
|
|
This PCI card can run at an amazing speed of up to 18,000,000 baud. It provides 2 industry standard RS422/485 serial ports for PC compatibles in a single PCI slot. The card has on-board zener diodes giving transient spike protection to the inputs - making it ideal for factory automation installations. Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 7.
|
|
|
|
Features |
|
- 2 port RS422/485
-
PCI 2.3
-
128 Byte Tx and 128 Byte Rx FIFOs
-
Up to 18,000,000 18 MegaBaud Baud
-
DB9 connector (9 Pin Male)
-
Drivers for all popular operating systems
-
Sample Programs, Test & Terminal software
-
Lifetime Support
-
Lifetime Warranty (registration required)
|
|

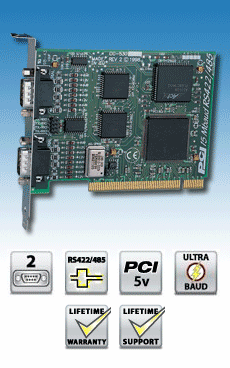

Product Picture |
|
|
|

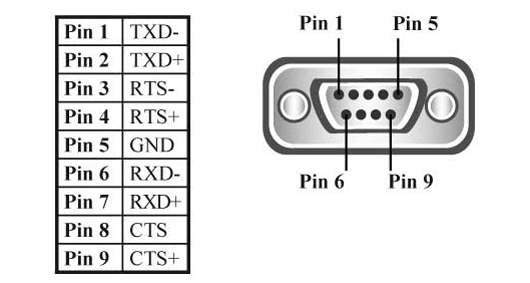

RS422/485 Pinout (9-pin) |
|
|
|
Operating Systems |
|
- Microsoft Windows 7 32 bit & 64 bit Editions
-
Windows Server 2008 32 bit & 64 bit Editions
-
Windows Vista 32 bit & 64 bit Editions
-
Windows Server 2003 32 bit & 64 bit Editions
-
Windows XP 32 bit & 64 bit Editions
-
Microsoft Windows ME
-
Microsoft Windows 2000
-
Microsoft Windows 98
-
Microsoft Windows NT 4.0
-
Microsoft Windows 95
-
Linux
-
Microsoft Windows 3.x
-
OS/2
-
DOS
|
|
Interface |
|
PCI 2.3 Conventional PCI
|
|
| |
|
