Brainboxes - ES-522 - Industrial Ethernet to Serial converter 2xRS232/422/485





The Brainboxes ES-522 is an Ethernet to Serial Device (Serial Device Server) with 2 x software selectable Serial Ports which can be configured as RS232, RS422/485 full duplex or RS422 Half duplex. The ES-522 has removable Screw Terminals Blocks for easy wiring, a slim 'end on' case and integral DIN rail mount. The Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. The Industrial ES range provides simple instant networked serial ports in demanding environments. Serial Port Tunnelling allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with the PW-600 power supply.





Features



Product Features
  • Industrial Ethernet to Serial Device Server
  • 2 x Serial Ports
  • Each Serial Port is configurable as RS-232/422/485
  • Data rate from 110 to 921,600 baud

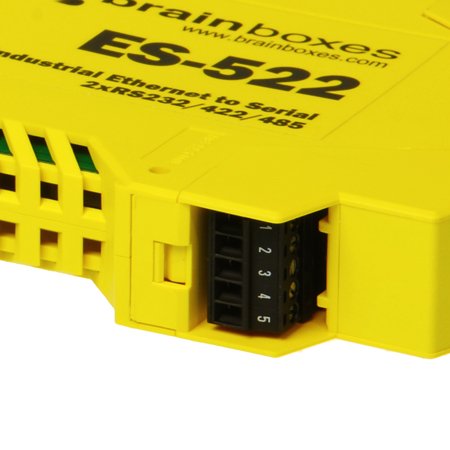

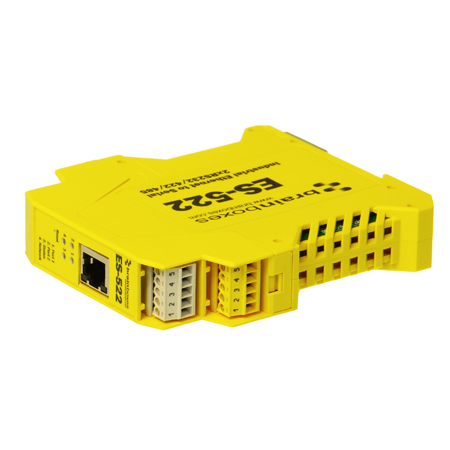

  • Removable, colour-coded, number terminal blocks
  • -30°C to +80°C Temperature range

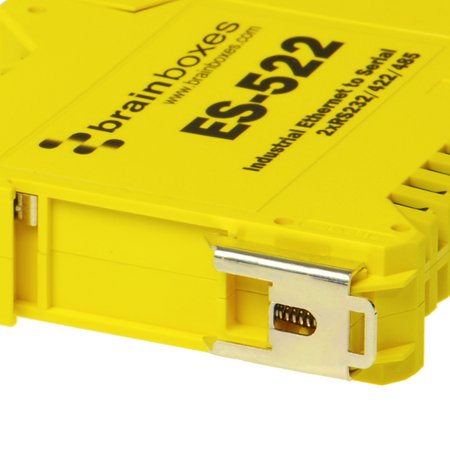

  • Robust, Slim Design, Integrated DIN rail mount

Product Pictures

Just click an image to view a larger version.

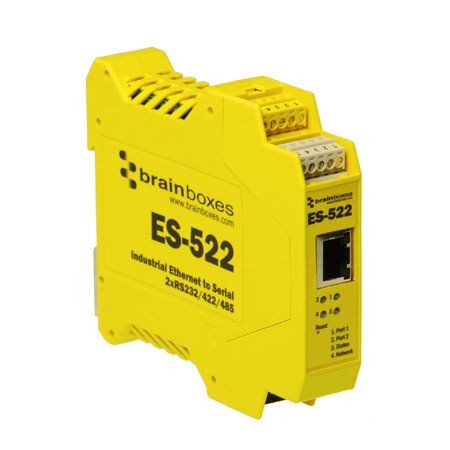

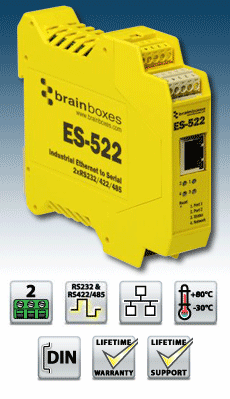

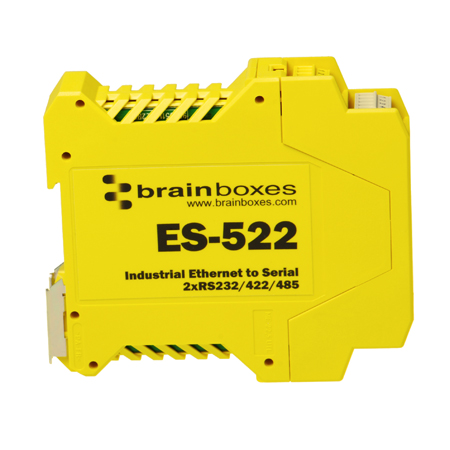

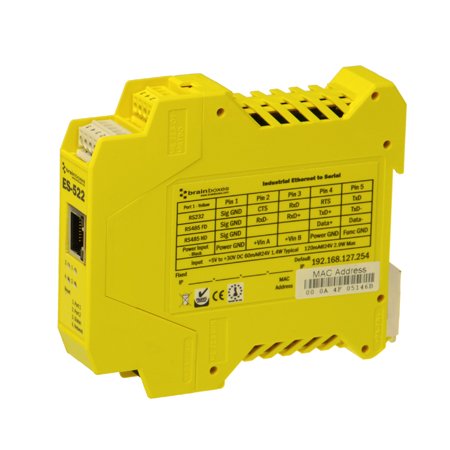

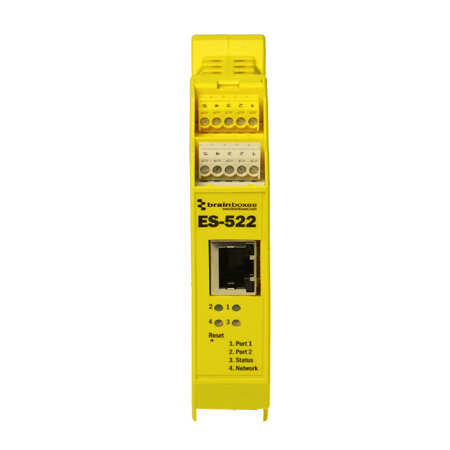

Picture 1 Picture 2 Picture 3 Picture 4
Picture 5 Picture 6 Picture 7



Operating Systems
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows Server 2003 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Linux

Interface

Ethernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world.





Ordering Information...




Brainboxes - ES-522 - Industrial Ethernet to Serial converter 2xRS232/422/485
Ethernet to Serial Device with 2 Ports - software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex.
Manufacturer:  Brainboxes
Order Code:  BRAIN-ES-522
Quantity Price (GBP) [Excl. VAT]
1 and above 275.00

Availability:
0 in stock
14 days delivery
Product Information
Product:  Brainboxes - ES-522 - Industrial Ethernet to Serial converter 2xRS232/422/485
Manufacturer:  Brainboxes
Order Code:  BRAIN-ES-522
Availability:  0 in stock
14 days delivery
Price:   275.00 (GBP)
 [Excl. VAT]


Downloads
Download View Downloads for this Product
