Brainboxes UC-313 - 2 Port RS422/485 PCI Serial Card |
|
|
|
|
|
|
Universal PCI Serial Card providing two RS422/485 serial ports with transient spike protection. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8.
|
|
|
 |
Product Features |
|
- 2 Port RS422/485 Serial Card
-
128 Byte Tx and 128 Byte Rx FIFOs
-
Up to 921,600 Baud
-
PCI 3.0
-
Drivers for all popular operating systems
-
Lifetime Warranty and Support
|
 |

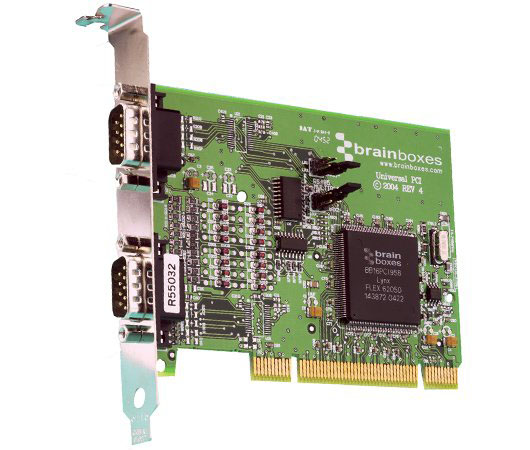

Product Picture |
|

|
 |

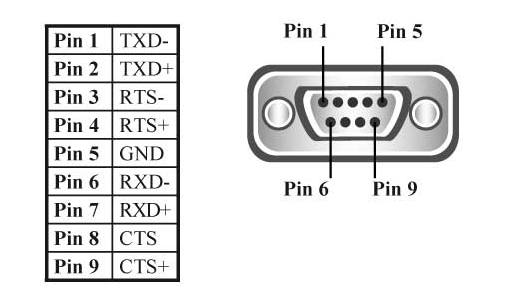

RS422/485 Pinout (9-pin) |
|

|
 |
Operating System Compatibility |
|
- Microsoft Windows 8 32 bit & 64 bit Editions
-
Windows Server 2012
-
Microsoft Windows 7 32 bit & 64 bit Editions
-
Windows Server 2008 32 bit & 64 bit Editions
-
Windows Vista 32 bit & 64 bit Editions
-
Windows Server 2003 32 bit & 64 bit Editions
-
Windows XP 32 bit & 64 bit Editions
-
Microsoft Windows 2000
-
Microsoft Windows 98
-
Microsoft Windows 95
-
DOS
|
 |
Interface |
|
PCI 3.0 Peripheral Component Interface
|
|
|  |
|
