Brainboxes PM-143 1 Port RS232 PCMCIA with ruggedised integrated cable





PC Card providing one ruggedised RS232 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your laptop. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 95/98/2000, XP, Server 2003, Vista, Server 2008 and Windows 7.




Features



Product Features
  • 1 port RS232
  • PCMCIA socket size
  • 128 Byte Tx and 128 Byte Rx FIFOs
  • Up to 921,600 Baud
  • DB9 connector (9 Pin Male)
  • Drivers for all popular operating systems
  • Sample Programs, Test & Terminal software
  • Lifetime Support
  • Lifetime Warranty (registration required)

PM-143 Product Picture

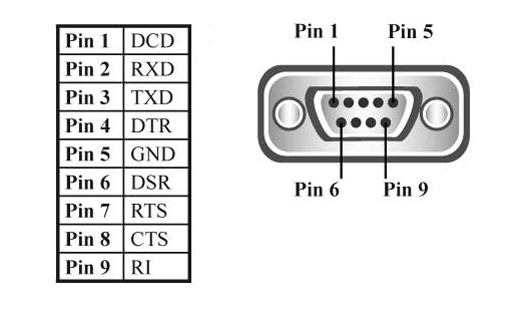

RS232 Pinout (9 pin male)

Operating System Compatibility
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Microsoft Windows 2000

Interface

PCMCIA PCMCIA (Personal Computer Memory Card International Association) is an international standards body and trade association with over 100 member companies that was founded in 1989 to establish standards for Integrated Circuit cards and to promote interchangeability among mobile computers where ruggedness, low power, and small size were critical.




Ordering Information...




Brainboxes PM-143 1 Port RS232 PCMCIA with ruggedised integrated cable
A PC Card providing one ruggedised RS232 serial port.
Manufacturer:  Brainboxes
Order Code:  BRAIN-PM-143
Quantity Price (GBP) [Excl. VAT]
1 and above
135.00

Availability:
0 in stock
30 days delivery
Product Information
Product:  Brainboxes PM-143 1 Port RS232 PCMCIA with ruggedised integrated cable
Manufacturer:  Brainboxes
Order Code:  BRAIN-PM-143
Availability:  0 in stock
30 days delivery
Price:   135.00 (GBP)
 [Excl. VAT]


Downloads
Download View Downloads for this Product
